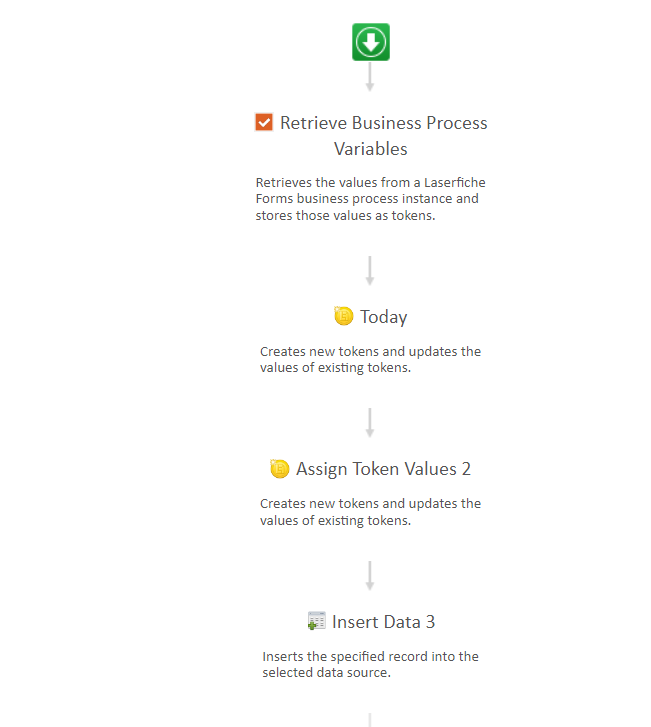

Please see attached for more details
It has been determined that the problem was the "Use TLS" option enabled in FormsConfig for the WF connection, which in this internal Test environment would not work due to no SSL certs being setup.
The error says that the Workflow Database is not configured. It looks like Forms can't see that workflow to run it.
Hi, I have everything configured correctly, as other WF's are running.
Do I need to setup the workflow anywhere else to be found?
Jennifer is correct about the error, but, assuming you are connecting the Designer to the same Workflow Server used in Forms, the error is not related to Forms. There should be a more detailed error in the Forms event log.
Timestamp: 2023-10-05 14:11:34.423
Local Time: 05/10/2023 15:11:34
Category: Errors
Machine: xxxxxxxx
Severity: Error
Application Domain: Laserfiche.Workflow.Subscriber.exe
Process Id: 11464
Process Name: C:\Program Files\Laserfiche\Workflow\Laserfiche.Workflow.Subscriber.exe
Win32 Thread Id: 15656 -
Thread Name:
Message: <Exception handlingInstanceId="139a2172-56af-46b0-83c0-ed3e289cc18c">
<Description>An exception of type 'Laserfiche.Workflow.WFSOException' occurred and was caught.</Description>
<DateTime>2023-10-05 15:11:34Z</DateTime>
<ExceptionType>Laserfiche.Workflow.WFSOException, Laserfiche.Workflow.ServerObjects, Version=8.3.0.0, Culture=neutral, PublicKeyToken=d8428ff9263e6cda</ExceptionType>
<Message>An error occurred communicating with the workflow server. View error log for more details. [0604-WFSO0]</Message>
<Source>Laserfiche.Workflow.Subscriber</Source>
<HelpLink />
<Property name="Trace" />
<Property name="IsCommunicationError">True</Property>
<Property name="ServerExceptionType" />
<Property name="ServerError">True</Property>
<Property name="TargetSite">Void UpdateRules(Laserfiche.Workflow.Subscriber.Runtime.Threads.StartingRuleManagerThread)</Property>
<Property name="HResult">-2146233088</Property>
<StackTrace>Client trace
at Laserfiche.Workflow.Subscriber.Runtime.Threads.StartingRuleManagerThread.UpdateRules(StartingRuleManagerThread thread)
at Laserfiche.Workflow.Subscriber.Runtime.Threads.StartingRuleManagerThread.RefreshRules(Object state)
</StackTrace>
<additionalInfo>
<info name="MachineName" value="xxxxxxxxxx" />
<info name="TimeStamp" value="05/10/2023 14:11:34" />
<info name="FullName" value="Microsoft.Practices.EnterpriseLibrary.ExceptionHandling, Version=5.0.414.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" />
<info name="AppDomainName" value="Laserfiche.Workflow.Subscriber.exe" />
<info name="ThreadIdentity" value="" />
<info name="WindowsIdentity" value="EQUIOM\SVC_laserfischePRD" />
</additionalInfo>
<InnerException>
<ExceptionType>System.ServiceModel.CommunicationObjectFaultedException, System.ServiceModel, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089</ExceptionType>
<Message>The communication object, System.ServiceModel.Channels.ServiceChannel, cannot be used for communication because it is in the Faulted state.</Message>
<Source>mscorlib</Source>
<HelpLink />
<Property name="TargetSite">Void HandleReturnMessage(System.Runtime.Remoting.Messaging.IMessage, System.Runtime.Remoting.Messaging.IMessage)</Property>
<Property name="HResult">-2146233087</Property>
<StackTrace>
Server stack trace:
at System.ServiceModel.Channels.CommunicationObject.ThrowIfDisposedOrNotOpen()
at System.ServiceModel.Channels.ServiceChannel.EnsureOpened(TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannel.Call(String action, Boolean oneway, ProxyOperationRuntime operation, Object[] ins, Object[] outs, TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannelProxy.InvokeService(IMethodCallMessage methodCall, ProxyOperationRuntime operation)
at System.ServiceModel.Channels.ServiceChannelProxy.Invoke(IMessage message)
Exception rethrown at [0]:
at System.Runtime.Remoting.Proxies.RealProxy.HandleReturnMessage(IMessage reqMsg, IMessage retMsg)
at System.Runtime.Remoting.Proxies.RealProxy.PrivateInvoke(MessageData& msgData, Int32 type)
at Laserfiche.Workflow.IWorkflowServerApi.TransferDataFromServer(ItemData itemData)
at Laserfiche.Workflow.Internal.WorkflowServerClient.TransferDataFromServer(ItemData itemData)</StackTrace>
</InnerException>
</Exception>
Timestamp: 2023-10-05 14:11:34.157
Local Time: 05/10/2023 15:11:34
Category: Errors
Machine: xxxxxx
Severity: Error
Application Domain: Laserfiche.Workflow.Subscriber.exe
Process Id: 11464
Process Name: C:\Program Files\Laserfiche\Workflow\Laserfiche.Workflow.Subscriber.exe
Win32 Thread Id: 13468 - Stats thread
Thread Name: Stats thread
Message: <Exception handlingInstanceId="fc3cae11-39f4-48e3-bf53-ba658f0fab18">
<Description>An exception of type 'Laserfiche.Workflow.WorkflowServerNotFoundException' occurred and was caught.</Description>
<DateTime>2023-10-05 15:11:34Z</DateTime>
<ExceptionType>Laserfiche.Workflow.WorkflowServerNotFoundException, Laserfiche.Workflow.ServerObjects, Version=8.3.0.0, Culture=neutral, PublicKeyToken=d8428ff9263e6cda</ExceptionType>
<Message>Connection to the Workflow Server 'xxxxxxxx.equiom.lan' could not be created.</Message>
<Source>Laserfiche.Workflow.ServerObjects</Source>
<HelpLink />
<Property name="Server">xxxxxxxxx.equiom.lan</Property>
<Property name="Trace" />
<Property name="IsCommunicationError">True</Property>
<Property name="ServerExceptionType" />
<Property name="TargetSite">Laserfiche.Workflow.Connection.OperationResult ExecuteCommand(Laserfiche.Workflow.Connection.OperationCommand)</Property>
<Property name="HResult">-2146233088</Property>
<StackTrace>Client trace
at Laserfiche.Workflow.Internal.WorkflowServerClient.ExecuteCommand(OperationCommand data)
at Laserfiche.Workflow.WorkflowServerClientExtensions.ExecuteCommandInternal(IWorkflowServerApi api, ExecuteOperationCommand command)
at Laserfiche.Workflow.ServerObject.Update()
at Laserfiche.Workflow.Subscriber.Runtime.WorkflowServerCommandExecutor.ExecuteCommandInternal(SubscriberCommand command, Int32 retryCount)
</StackTrace>
<additionalInfo>
<info name="MachineName" value="xxxxxxxx" />
<info name="TimeStamp" value="05/10/2023 14:11:34" />
<info name="FullName" value="Microsoft.Practices.EnterpriseLibrary.ExceptionHandling, Version=5.0.414.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" />
<info name="AppDomainName" value="Laserfiche.Workflow.Subscriber.exe" />
<info name="ThreadIdentity" value="" />
<info name="WindowsIdentity" value="EQUIOM\SVC_laserfischePRD" />
</additionalInfo>
<InnerException>
<ExceptionType>System.ServiceModel.EndpointNotFoundException, System.ServiceModel, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089</ExceptionType>
<Message>Could not connect to net.tcp://xxxxxxxxxx.equiom.lan:8085/ManagementService. The connection attempt lasted for a time span of 00:00:02.0624840. TCP error code 10061: No connection could be made because the target machine actively refused it 10.2.0.109:8085. </Message>
<Source>mscorlib</Source>
<HelpLink />
<Property name="TargetSite">Void HandleReturnMessage(System.Runtime.Remoting.Messaging.IMessage, System.Runtime.Remoting.Messaging.IMessage)</Property>
<Property name="HResult">-2146233087</Property>
<StackTrace>
Server stack trace:
at System.ServiceModel.Channels.SocketConnectionInitiator.Connect(Uri uri, TimeSpan timeout)
at System.ServiceModel.Channels.BufferedConnectionInitiator.Connect(Uri uri, TimeSpan timeout)
at System.ServiceModel.Channels.ConnectionPoolHelper.EstablishConnection(TimeSpan timeout)
at System.ServiceModel.Channels.ClientFramingDuplexSessionChannel.OnOpen(TimeSpan timeout)
at System.ServiceModel.Channels.CommunicationObject.Open(TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannel.OnOpen(TimeSpan timeout)
at System.ServiceModel.Channels.CommunicationObject.Open(TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannel.CallOpenOnce.System.ServiceModel.Channels.ServiceChannel.ICallOnce.Call(ServiceChannel channel, TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannel.CallOnceManager.CallOnce(TimeSpan timeout, CallOnceManager cascade)
at System.ServiceModel.Channels.ServiceChannel.EnsureOpened(TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannel.Call(String action, Boolean oneway, ProxyOperationRuntime operation, Object[] ins, Object[] outs, TimeSpan timeout)
at System.ServiceModel.Channels.ServiceChannelProxy.InvokeService(IMethodCallMessage methodCall, ProxyOperationRuntime operation)
at System.ServiceModel.Channels.ServiceChannelProxy.Invoke(IMessage message)
Exception rethrown at [0]:
at System.Runtime.Remoting.Proxies.RealProxy.HandleReturnMessage(IMessage reqMsg, IMessage retMsg)
at System.Runtime.Remoting.Proxies.RealProxy.PrivateInvoke(MessageData& msgData, Int32 type)
at Laserfiche.Workflow.IWorkflowServerApi.Connect(ConnectionOptions options)
at Laserfiche.Workflow.Internal.WorkflowServerClient.EnsureChannelReady()
at Laserfiche.Workflow.Internal.WorkflowServerClient.ExecuteCommand(OperationCommand data)</StackTrace>
<InnerException>
<ExceptionType>System.Net.Sockets.SocketException, System, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089</ExceptionType>
<Message>No connection could be made because the target machine actively refused it 10.2.0.109:8085</Message>
<Source>System</Source>
<HelpLink />
<Property name="ErrorCode">10061</Property>
<Property name="SocketErrorCode">ConnectionRefused</Property>
<Property name="NativeErrorCode">10061</Property>
<Property name="TargetSite">Void DoConnect(System.Net.EndPoint, System.Net.SocketAddress)</Property>
<Property name="HResult">-2147467259</Property>
<StackTrace> at System.Net.Sockets.Socket.DoConnect(EndPoint endPointSnapshot, SocketAddress socketAddress)
at System.Net.Sockets.Socket.Connect(EndPoint remoteEP)
at System.ServiceModel.Channels.SocketConnectionInitiator.Connect(Uri uri, TimeSpan timeout)</StackTrace>
</InnerException>
</InnerException>
</Exception>
Hi, we have workflows running, just not the ones that are triggered by forms.
