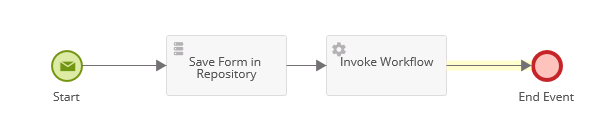

Workflow cannot run before the form is submitted. In your process, you only have the starting form, while the service task is set to run after the process starts. You would need a user task after the service task to see the values sent back from Workflow.

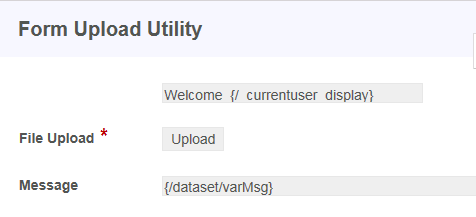

 Do we have any workflow / form example that gives a demo on how the communication between workflow and the form takes place.

Thanks

For example, in the process below, the starting form and the one displayed in User Task can't see data from Workflow because they occur before the workflow task runs. The form displayed in User Task (2) can show data from Workflow because it occurs after the service task in the process.

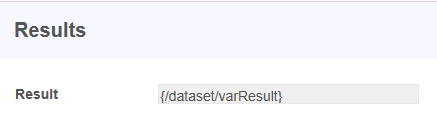

How can I show a form called Results used in User Task

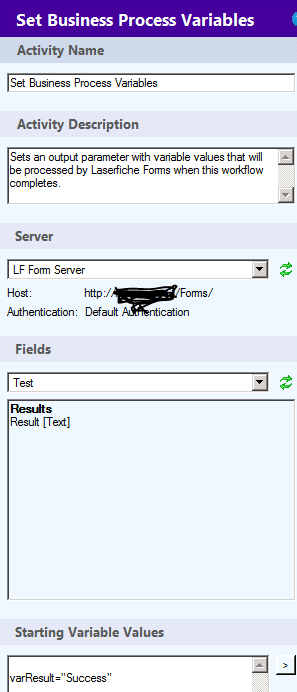

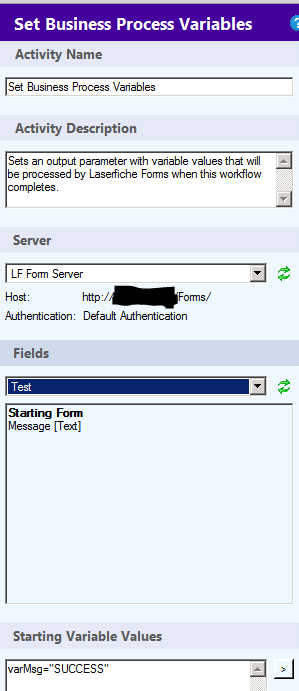

Invoke Workflow is updating the variable used in the form Results

Any suggestions?

Thanks for your help

How can I show a form called Results used in User Task

Invoke Workflow is updating the variable used in the form Results

Any suggestions?

Thanks for your help

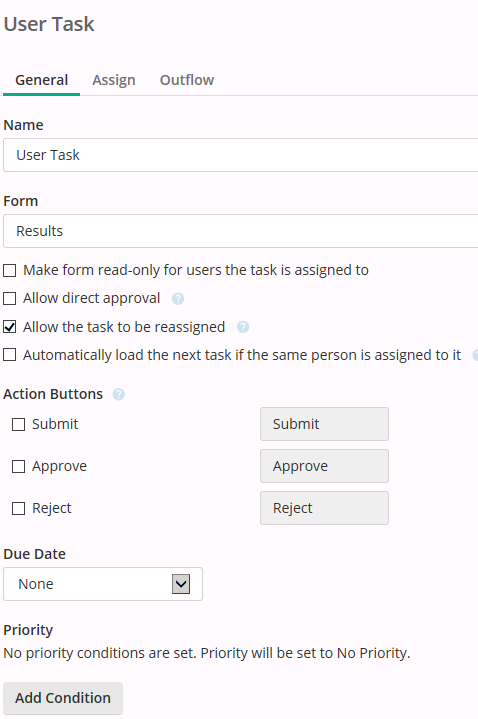

What form did you specify in the user task properties?

Results Form

Oh, wait, you're setting the Result field value to {/dataset/varResult} in your form. It should be blank not default to that variable.

I removed  {/dataset/varResult}

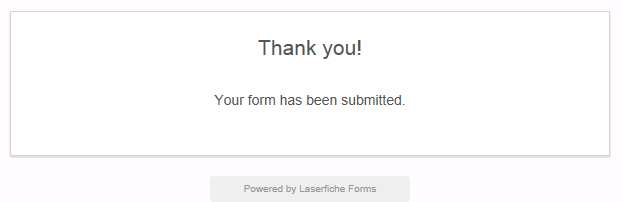

The form Results is still not showing up instead Thanks You Form is always displayed.

Is there any way to replace standard Thank You form with the Results form.

Thanks

But if you go into the Inbox, do you see the user task assigned to that user and showing the Results form with the expected data?

Yes, I can the see the Result form with the expected data.

Thanks

Ok, so the process of getting the URL into the form works.

On the start event, you can set it to automatically show the next user task if the same person is assigned to it. That will make it show the Results form to the user instead of the Thank You page. However, keep in mind that this behavior has a timeout of about 40 seconds, so if saving the form to Laserfiche and running the workflow takes longer than that, the user may still get the Thank You page instead. The Results form will always be available to the user in Inbox though.

It worked.

Is there any way to show the Results form without using User Task.  I would like to show the Results form on its own ie not as assigned Task.

One way I was thinking is to create a web page and redirect to this page from Start Event.  I hope I can pass some parameters to this page.

However, my first choice is not stay within Laserfiche environment.

Not on the page. You could email out the URL to the submitter instead.
