How do I add a "test" button to my Workflow custom activity?

Workflow Version 10

Updated February 10, 2021

posted on March 11, 2016

I created a custom activity in Workflow and hooked it up to the Designer. It works fine. I now want to add a "test" button on the activity's UI so that I can test its Execute method without having to run the entire workflow. Just like the "test" button in several other (out-of-the-box) activities, such as Web Request:

Thanks in advance.

P.S. The white paper was well-written and very useful. The instructions work fine even in VS 2015!

0 0

Comments 0
Follow-Ups 1

You are not allowed to reply in this post.

Discussion 1

posted on March 12, 2016

Ege,

Not sure how much detail you are looking for but here is how I implemented a similar type 'Test' link in my FTP Export Activity;

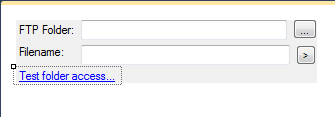

Add a 'User Control' to the project that contains a link label control;

Then modify the new User Control to inherit the EditPanelControlBase and override some of the default methods;

Imports System.ComponentModel
Imports System.Windows.Forms
Imports System.Net

Imports Laserfiche.Connection
Imports Laserfiche.Custom.Activities
Imports Laserfiche.UI
Imports Laserfiche.UI.EditPanel
Imports Laserfiche.Workflow.ComponentModel

Public Class DestinationControl
    Inherits EditPanelControlBase

    Private Updating As Boolean = False

#Region "Default Method Overrides"

    Protected Overrides Sub OnValueChanged(e As Laserfiche.ComponentModel.PropertyValueChangedEventArgs)
        MyBase.OnValueChanged(e)
        Me.UpdatePropertyPane()
    End Sub

    Protected Overrides Sub OnContextChanged()
        MyBase.OnContextChanged()
        Me.UpdatePropertyPane()
    End Sub

    Public Overrides Sub Save()

        'Deserialize the property value into a usable object...
        Dim request As FtpDestination = ObjectSerializer.Deserialize(Of FtpDestination)(Me.Value)

        request.FtpFolder = Me.uiFolderTextBox.Text
        request.Filename = Me.uiFilenameTextBox.Value

        Me.Value = ObjectSerializer.Serialize(request)

        Me.UpdatePropertyPane()

    End Sub

#End Region

#Region "Helpers"

    Protected Sub UpdatePropertyPane()

        Try
            Me.Updating = True

            'Deserialize the property value into a usable object...
            Dim request As FtpDestination = ObjectSerializer.Deserialize(Of FtpDestination)(Me.Value)

            Me.uiFolderTextBox.Text = request.FtpFolder

            Me.uiFilenameTextBox.Context = Me.Context
            Me.uiFilenameTextBox.ShowTokenButton = True
            Me.uiFilenameTextBox.Value = request.Filename

            Me.Updating = False

            request = Nothing

        Catch ex As Exception
            LfMessageBox.Show(ex.Message, "Error", LfMessageBoxConfiguration.OK)

        End Try

    End Sub

    Private Sub TestConnection()

        Try

            'If the FTP service is not configured then show error dialog...
            If String.IsNullOrEmpty(Me.SelectedService.Name) Then
                LfMessageBox.Show("There is no FTP service selected and configured.", "Error", LfMessageBoxConfiguration.OK)
            Else
                Dim service As FtpService = Me.SelectedService
                Dim hostURI As New Uri(FixURI(service.Host, service.Port, Me.uiFolderTextBox.Text))
                Dim request = DirectCast(WebRequest.Create(hostURI), FtpWebRequest)

                request.Method = WebRequestMethods.Ftp.ListDirectory
                request.Timeout = service.Timeout
                request.EnableSsl = service.UseSSL
                request.UsePassive = service.PassiveMode

                request.KeepAlive = False
                request.UseBinary = True

                If SelectedService.AuthenticationMode = FtpService.FtpAuthenticationMode.Credentials Then
                    request.Credentials = New System.Net.NetworkCredential(service.UserName, service.Password)
                End If

                'Set callback routine if we can allow for insecure certificates...
                If SelectedService.AllowInsecureCertifications Then
                    CertificateValidation.SelectedService = service
                    ServicePointManager.ServerCertificateValidationCallback = AddressOf CertificateValidation.AcceptAllCertifications
                Else
                    ServicePointManager.ServerCertificateValidationCallback = Nothing
                End If

                Try
                    Using response As FtpWebResponse = DirectCast(request.GetResponse(), FtpWebResponse)
                        LfMessageBox.Show("Folder '" & hostURI.ToString & "' can be accessed", "Success", LfMessageBoxConfiguration.OK)
                        response.Close()
                    End Using

                Catch ex As WebException
                    Using response As FtpWebResponse = DirectCast(ex.Response, FtpWebResponse)
                        LfMessageBox.Show("Unable to access folder '" & hostURI.ToString & "'. " & response.StatusDescription, "Failed", LfMessageBoxConfiguration.OK)
                        response.Close()
                    End Using

                Finally

                    'Make sure we set the servicepointmanager back to its default certificate setting...
                    ServicePointManager.ServerCertificateValidationCallback = Nothing

                End Try

                request = Nothing
                service = Nothing

            End If

        Catch ex As Exception
           LfMessageBox.Show(ex.Message, "Error", LfMessageBoxConfiguration.OK)

        End Try

    End Sub

    Private Function FixURI(ByVal host As String, ByVal port As Integer, ByVal folder As String) As String
        Dim returnURI As String

        If host.EndsWith("/") Then
            returnURI = host.Substring(0, host.Length - 1) & ":" & port.ToString & "/"
        Else
            returnURI = host & ":" & port.ToString & "/"
        End If

        If folder.StartsWith("/") Then folder = folder.Substring(1, folder.Length - 1)

        returnURI &= folder

        Return returnURI

    End Function

#End Region

#Region "Control Events"

    Private Sub uiTestLink_LinkClicked(sender As System.Object, e As System.Windows.Forms.LinkLabelLinkClickedEventArgs) Handles uiTestLink.LinkClicked

        Me.TestConnection()

    End Sub

    Private Sub TextBox_ValueChanged(sender As Object, e As Laserfiche.ComponentModel.PropertyValueChangedEventArgs) Handles uiFilenameTextBox.ValueChanged
        If Not Me.Updating Then
            Me.Save()
        End If
    End Sub

    Private Sub uiFolderTextBox_TextChanged(sender As Object, e As System.EventArgs) Handles uiFolderTextBox.TextChanged
        If Not Me.Updating Then
            Me.Save()
        End If
    End Sub

#End Region

#Region "Properties"

    <Browsable(False), DesignerSerializationVisibility(DesignerSerializationVisibility.Hidden)>
    Protected ReadOnly Property SelectedService As FtpService
        Get
            Dim service As FtpService = New FtpService
            Dim context As ITypeDescriptorContext = Me.Context
            Dim xml As String = DirectCast(context.Instance, FtpExport.FtpExport.FtpExportActivityProxy).Services
            Dim services As FtpServices = ObjectSerializer.Deserialize(Of FtpServices)(xml)

            service = services.Item(services.SelectedService)

            Return service

        End Get
    End Property

#End Region

    Private Sub uiExploreButton_Click(sender As System.Object, e As System.EventArgs) Handles uiExploreButton.Click

        'If the FTP service is not configured then show error dialog...
        If String.IsNullOrEmpty(Me.SelectedService.Name) Then
            LfMessageBox.Show("There is no FTP service selected and configured.", "Error", LfMessageBoxConfiguration.OK)
        Else
            Dim service As FtpService = Me.SelectedService
            Dim folderPath As String = FixURI(service.Host, service.Port, Me.uiFolderTextBox.Text)

            Using dialog As FtpBrowserDialog = New FtpBrowserDialog
                dialog.Service = service
                dialog.SelectedFolder = folderPath
                dialog.ShowDialog()
                If dialog.DialogResult = DialogResult.OK Then
                    Me.uiFolderTextBox.Text = dialog.SelectedFolder
                End If
            End Using

        End If

    End Sub

End Class

Next, add the new User Control as a property of your custom activity (Note: I usually set the object type to 'Object' so that when I run the Activity Proxy Generator I can select the proper edit control)


        Private _destination As Object = String.Empty
        Public Property Destination As Object
            Get
                Return _destination
            End Get
            Set(value As Object)
                _destination = value
            End Set
        End Property

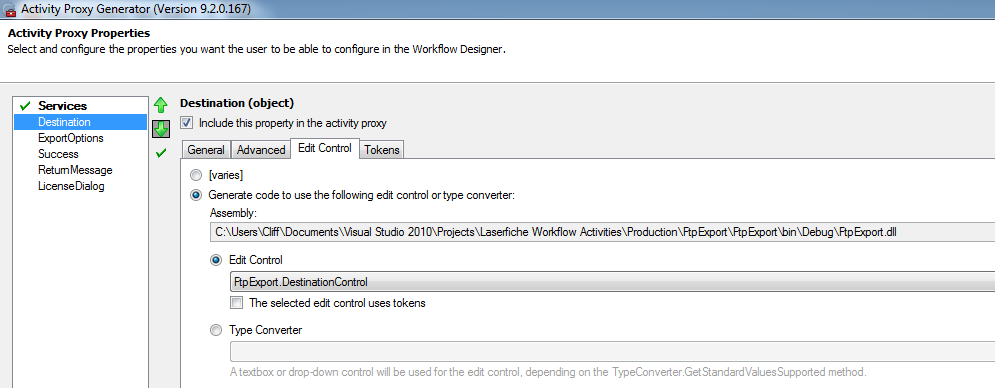

Finally when you run the Activity Proxy Generator select the new edit control for the property;

Here is what the proxy code should look like;

       '''<summary>
        '''Gets or sets the Destination property.
        '''</summary>
        <DisplayNameAttribute("FTP Destination"), _
         SortIndexAttribute(14), _
         CustomEditControlAttribute(GetType(DestinationControl))> _
        Public Property Destination() As Object
            Get
                Return Me._Destination
            End Get
            Set(value As Object)
                If (Object.Equals(Me._Destination, value) = False) Then
                    Dim old As Object = Me._Destination
                    Me._Destination = value
                    Me.OnPropertyChanged(DestinationPropertyName, old, value)
                End If
            End Set
        End Property

I know this is a lot of code and I am sure you can pare it down if you don't need all of the functionality. Let me know if you need anything else.

1 0

View 2 previous replies

replied on March 12, 2016

Ahh, thanks a lot Cliff. Although... do you happen to have any C# examples?

If not, no big deal, I'll fiddle with it and try to figure it out.

0 0

replied on March 13, 2016

I use this website whenever I have to move back and forth between languages;

http://converter.telerik.com/

Good luck! Let me know if you need anything else...

1 0

replied on February 7, 2021

Hello @████████

In your example above, what is the namespace for the ObjectSerializer? I'm attempting to convert your code to C# and I think there may be a missing equivalence.

Thank you

0 0

replied on February 7, 2021 • Show version history

Braden,

I wrote my own class to serialize/deserialize the property.

Imports Laserfiche.UI

Public NotInheritable Class ObjectSerializer

#Region "Constructor"

    Private Sub New()
    End Sub

#End Region

#Region "Serialization Routines"

    Public Shared Function Serialize(ByVal objectToSerialize As Object) As String
        Dim serializedObject As String = String.Empty

        Try
            Using writer As New IO.StringWriter
                Dim serializer As New Xml.Serialization.XmlSerializer(objectToSerialize.GetType)

                serializer.Serialize(writer, objectToSerialize)
                serializedObject = writer.ToString()

                serializer = Nothing

            End Using

        Catch ex As Exception
            LfMessageBox.Show("Error serializing object.  " & ex.Message, "Error", LfMessageBoxConfiguration.OK)

        End Try

        Return serializedObject

    End Function

    Public Shared Function Deserialize(Of T As New)(ByVal xml As String) As T
        Dim deserializedObject As T = New T

        Try

            If Not String.IsNullOrEmpty(xml) Then
                Using reader As New IO.StringReader(xml)
                    Dim serializer As New Xml.Serialization.XmlSerializer(GetType(T))

                    deserializedObject = CType(serializer.Deserialize(reader), T)

                    serializer = Nothing

                End Using
            End If

        Catch ex As Exception
            LfMessageBox.Show("Error deserializing object.  " & ex.Message, "Error", LfMessageBoxConfiguration.OK)

        End Try

        Return deserializedObject

    End Function

#End Region

End Class

1 0

replied on February 8, 2021

Ah! Now I understand. Thank you
