Getting Invalid Pointer on OCRMarkedPages

SDK
asked on August 26, 2015 • Show version history

Getting this from .net and C++ code and can't figure out what is causing it.  Seems to work when targeting 9.2 but 9.1 Laserfiche fails.

Server is Windows Server 2012 R2 Standard

DocumentProcessor log:

26-Aug-2015, 20:33:39, [16387 (0x00004003)]: 14960 - Invalid pointer



Example Program:

```C#

using LFSO91Lib;
using DocumentProcessor91;
using System;

namespace OcrTest
{
   class Program
    {

        static void Main(string[] args)
        {
            var program = new Program();
        }

        public Program()
        {

            var app = new LFApplication();
            app.EnableTracing("C:\\temp\\");

            var server = app.GetServerByName("aosdemo");
            var db = server.GetDatabaseByName("aosdemo");
            var conn = new LFConnection();
            conn.UserName = "admin";
            conn.Password = "admin";
            conn.Create(db);

            MoveFileToDestination(db, "DEFAULT", "__SCTest\\OCRTesting\\New Folder\\", "ctest", "data\\SAMPLE 1.tif");

            Console.WriteLine("Press any key to quit...");
            Console.ReadKey();

            conn.Terminate();
        }


        bool MoveFileToDestination(ILFDatabase db, string Volume, string Destination, string DocumentName, string filename)
        {
            bool result = false;
            bool newDocument = false;

            Entry_Type entryType = Entry_Type.ENTRY_TYPE_DOCUMENT;
            ILFDocument document = null;
            try
            {

                newDocument = true;
                document = new LFDocument();
                var volume = db.GetVolumeByName(Volume);
                var parent = db.GetEntryByPath(Destination);
                document.Create(DocumentName, parent, volume, true);

                int idxStartPage = 0;
                int idxEndPage = 0;


                int pageRef = 0;

                var DI = new DocumentImporter();
                DI.LogFile = "C:\\temp\\di.log";
                DI.LogLevel = Log_Level.LOGLEVEL_DEBUG;

                DI.Document = document;

                var path = System.IO.Path.Combine(
                    System.Reflection.Assembly.GetExecutingAssembly().Location,
                    filename);
                document.LockObject(Lock_Type.LOCK_TYPE_WRITE);
                DI.ImportImagesFromFile(filename);
                document.UnlockObject();


                result = true;

                LFDocumentPages docPages = (LFDocumentPages)document.Pages;
                var ocr = new OCREngine();
                docPages.MarkAllPages();
                ocr.OCRMarkedPages(docPages);

            }
            catch (Exception ex)
            {
                Console.WriteLine(ex.Message);
                // if we created a new document and it wasn't sent to LF successfully,
                // then delete it and show the error
                if (document != null)
                {
                    document.Delete();
                    document = null;
                }
            }
            finally
            {

                if (document != null)
                {
                    document.Update();
                    document.Dispose();
                }
            }

            return result;
        }
    }
}



```

SAMPLE 1.tif (212.03 KB)
0 0

Replies

replied on August 27, 2015

Does this happen on a page with lots of text (more than 28k characters)? If so, this is a bug that was fixed in 9.2 (116966)

0 0
replied on August 31, 2015

I uploaded a sample tif along with the code.  It doesn't look like it would be anywhere near that character limit.  It fails on the sample tifs provided by Laserfiche.

0 0
replied on August 31, 2015

It must be failing to load the OCR engine. Is there anything else in the trace log?

0 0
replied on August 31, 2015

Unfortunately, that was all that was in the log for the DocumentProcessor (di.log here).  I didn't see anything else that was logged in the temp folder.  Is there something I'm missing to turn on more verbose logging either in LFApplication or DocumentProcessor classes?



FWIW, I am able to open the Laserfiche Client on this machine and OCR the pages from there.

0 0
replied on August 31, 2015

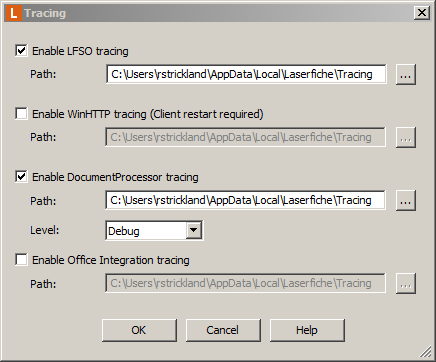

Turn on LFSO & DocumentProcessor tracing in the 9.1 client (from Help->About->Tracing), then try reproducing the problem. This should produce more verbose logs.

0 0
replied on September 1, 2015

Ok thanks. Here are the two logs' content after running the code.

DocumentProcessor log:

2015-09-01 DP 9.1.0.390
Current Process: C:\temp\Release\OcrTest.exe (PID=9808)
Current Module: c:\Program Files (x86)\Common Files\Laserfiche\9.1\DocumentProcessor91.dll
07:31:50.123 [4072] DocumentImporter::put_Document
07:31:50.123 [4072] DocumentImporter::ImportImagesFromFile
07:31:50.123 [4072]  DocumentImporter::ImageFileImport
07:31:50.123 [4072]   DocumentImporter::IsAPdfFile
07:31:50.123 [4072]   Utility::GetNextPage
07:31:50.404 [4072]   Utility::GetNextPage
07:31:50.482 [11220] OCREngine::OCRMarkedPages
07:31:50.498 [11220]  OCREngine::GetPagesToOCR
07:31:50.498 [11220]  OCREngine::OCRSelectedPages
07:31:50.498 [11220]   OCREngine::ExportTempImage
07:31:50.623 [11220]   OCREngine::OCRPage
07:31:50.638 [11220] Exception: 0x80004003 [16387] (Invalid pointer) (OCREngine::OCRMarkedPages at OCREngine.cpp:224)



LFSO log:

2015-09-01 LFSO 9.1.0.411
Current Process: C:\temp\Release\OcrTest.exe (PID=9808)
Current Module: c:\Program Files (x86)\Common Files\Laserfiche\9.1\LFSO91.dll
07:31:49.904 [4072] InitializePropertyMap
07:31:49.904 [4072] Internal parameters:
LoginTimeoutMS: 20000, ResolveTimeoutMS: 0, ConnectTimeoutMS: 5000,
SendTimeoutMS: 45000, ReceiveTimeoutMS: 900000, PingTimeoutMS: 1000,
DBListTimeoutMS: 3000, ServerInfoHTTPTimeoutMS: 5000, DBListHTTPTimeoutMS: 5000,
PingThreadPeriodSeconds: 8, PingThreadThresholdSeconds: 5, WMITimeoutMS: 1000,
WMIShortConnectTimeoutMS: 750, WMILongConnectTimeoutMS: 5000, WMIAdminTimeoutMS: 3000,
MaxMemBufferSize: 5242880, XmlOnly: F, AcceptDeflate: T,
LockTimeoutSeconds: 86400, MaxServerThreads: 256, MaxPagePartMemBufferSize: 52428800, MaxConnections: 4,
ListValueCacheTimeoutSeconds: -1, ShutdownTimeoutMilliseconds: 2000
07:31:49.904 [4072] CLFApplication::CLFApplication
07:31:49.920 [4072] CLFApplication::EnableTracing



1 0
replied on September 3, 2015

Ok, I think I figured it out. This is a bug in DocumentProcessor91.dll (SCR 110493), it hasn't been fixed in the SDK yet. If you are using the x86 version of DocumentProcessor91, you can get a fixed copy by installing the 9.1.1 SP2 update. Otherwise you need to use the 9.2 SDK.

0 0
