asked on June 3, 2015

My v9.2.1 forms business processes are not initiating the workflow when I use the Send to Workflow function.

I am getting first a Warning and then an Error.

Warning:

Event code: 3008

Event message: A configuration error has occurred.

Event time: 6/3/2015 10:17:15 AM

Event time (UTC): 6/3/2015 2:17:15 PM

Event ID: 290291a8be9643e281b5cb0897c19452

Event sequence: 1

Event occurrence: 1

Event detail code: 0



Application information:

Application domain: /LM/W3SVC/1/ROOT/Workflow-1-130778146303450654

Trust level: Full

Application Virtual Path: /Workflow

Application Path: C:\Program Files\Laserfiche\Laserfiche Workflow 8.3\Web\Laserfiche.Workflow.Web\

Machine name: LFDEV



Process information:

Process ID: 4424

Process name: w3wp.exe

Account name: NT AUTHORITY\NETWORK SERVICE



Exception information:

Exception type: ConfigurationErrorsException

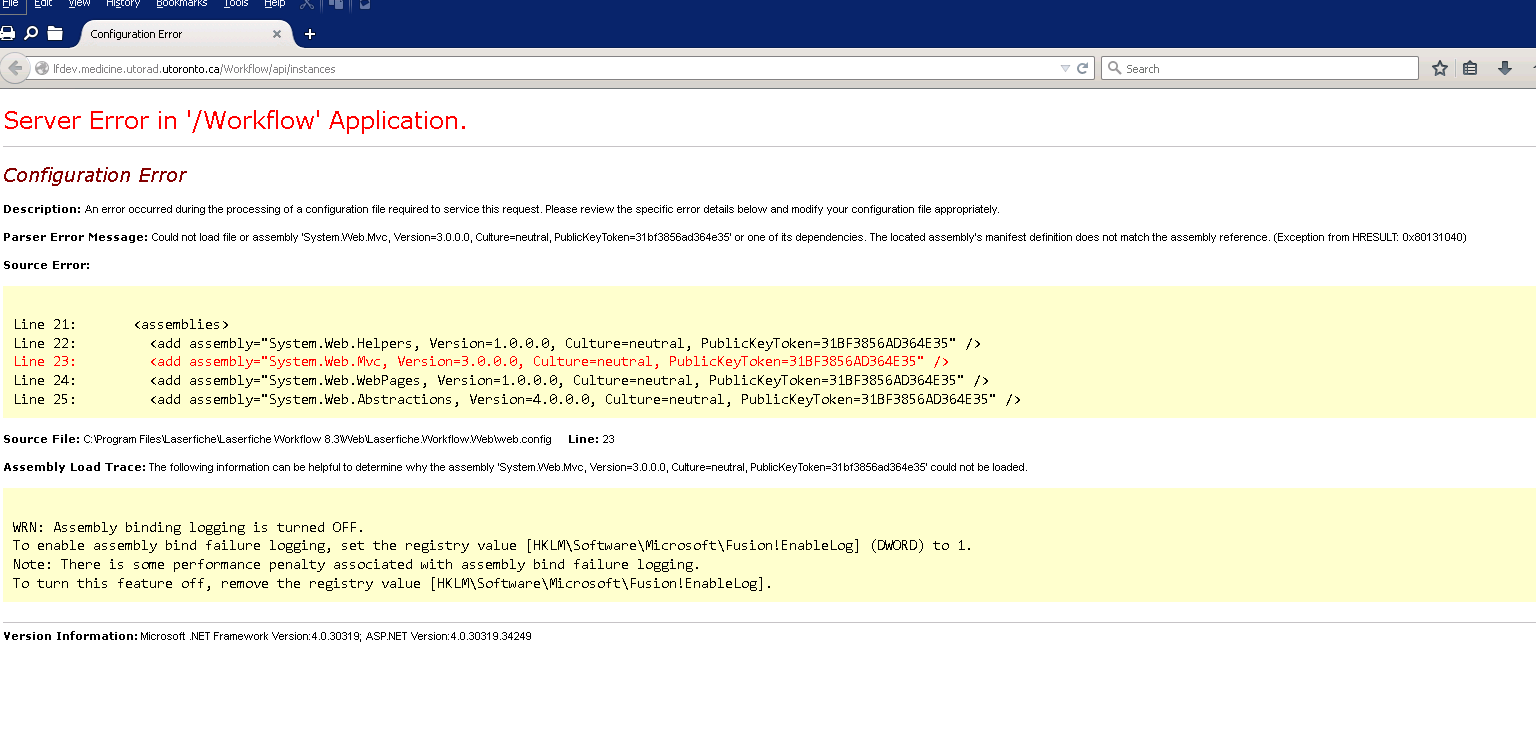

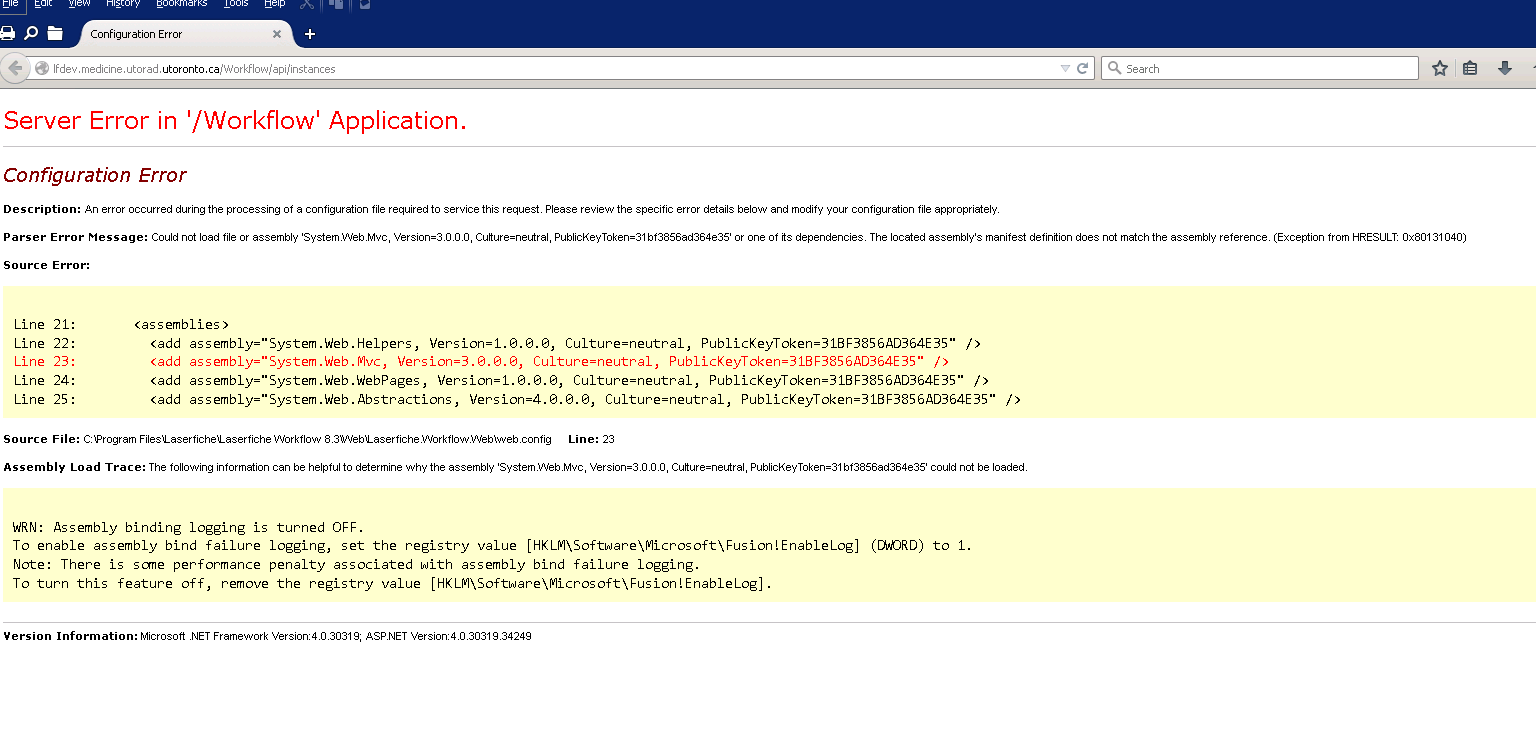

Exception message: Could not load file or assembly 'System.Web.Mvc, Version=3.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35' or one of its dependencies. The located assembly's manifest definition does not match the assembly reference. (Exception from HRESULT: 0x80131040) (C:\Program Files\Laserfiche\Laserfiche Workflow 8.3\Web\Laserfiche.Workflow.Web\web.config line 23)

at System.Web.Configuration.CompilationSection.LoadAssemblyHelper(String assemblyName, Boolean starDirective)

at System.Web.Configuration.AssemblyInfo.get_AssemblyInternal()

at System.Web.Compilation.BuildManager.GetReferencedAssemblies(CompilationSection compConfig)

at System.Web.Compilation.BuildManager.CallPreStartInitMethods(String preStartInitListPath, Boolean& isRefAssemblyLoaded)

at System.Web.Compilation.BuildManager.ExecutePreAppStart()

at System.Web.Hosting.HostingEnvironment.Initialize(ApplicationManager appManager, IApplicationHost appHost, IConfigMapPathFactory configMapPathFactory, HostingEnvironmentParameters hostingParameters, PolicyLevel policyLevel, Exception appDomainCreationException)

Could not load file or assembly 'System.Web.Mvc, Version=3.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35' or one of its dependencies. The located assembly's manifest definition does not match the assembly reference. (Exception from HRESULT: 0x80131040)

at System.Reflection.RuntimeAssembly._nLoad(AssemblyName fileName, String codeBase, Evidence assemblySecurity, RuntimeAssembly locationHint, StackCrawlMark& stackMark, IntPtr pPrivHostBinder, Boolean throwOnFileNotFound, Boolean forIntrospection, Boolean suppressSecurityChecks)

at System.Reflection.RuntimeAssembly.InternalLoadAssemblyName(AssemblyName assemblyRef, Evidence assemblySecurity, RuntimeAssembly reqAssembly, StackCrawlMark& stackMark, IntPtr pPrivHostBinder, Boolean throwOnFileNotFound, Boolean forIntrospection, Boolean suppressSecurityChecks)

at System.Reflection.RuntimeAssembly.InternalLoad(String assemblyString, Evidence assemblySecurity, StackCrawlMark& stackMark, IntPtr pPrivHostBinder, Boolean forIntrospection)

at System.Reflection.RuntimeAssembly.InternalLoad(String assemblyString, Evidence assemblySecurity, StackCrawlMark& stackMark, Boolean forIntrospection)

at System.Reflection.Assembly.Load(String assemblyString)

at System.Web.Configuration.CompilationSection.LoadAssemblyHelper(String assemblyName, Boolean starDirective)





Request information:

Request URL: http://lfdev.medicine.utorad.utoronto.ca/Workflow/api/instances

Request path: /Workflow/api/instances

User host address: 142.150.126.105

User:

Is authenticated: False

Authentication Type:

Thread account name: NT AUTHORITY\NETWORK SERVICE



Thread information:

Thread ID: 6

Thread account name: NT AUTHORITY\NETWORK SERVICE

Is impersonating: False

Stack trace: at System.Web.Configuration.CompilationSection.LoadAssemblyHelper(String assemblyName, Boolean starDirective)

at System.Web.Configuration.AssemblyInfo.get_AssemblyInternal()

at System.Web.Compilation.BuildManager.GetReferencedAssemblies(CompilationSection compConfig)

at System.Web.Compilation.BuildManager.CallPreStartInitMethods(String preStartInitListPath, Boolean& isRefAssemblyLoaded)

at System.Web.Compilation.BuildManager.ExecutePreAppStart()

at System.Web.Hosting.HostingEnvironment.Initialize(ApplicationManager appManager, IApplicationHost appHost, IConfigMapPathFactory configMapPathFactory, HostingEnvironmentParameters hostingParameters, PolicyLevel policyLevel, Exception appDomainCreationException)



ERROR:

Message: The remote server returned an error: (500) Internal Server Error. Stack trace: at System.Net.HttpWebRequest.GetResponse() at Laserfiche.Forms.Routing.LFWorkflowService.Execute(Int32 instanceId, IRoutingContext routingContext) at Laserfiche.Forms.Routing.ServiceTask.Execute(Int32 instanceId, IRoutingContext routingContext)



Thanks,

Heidar
