Question

Drop down menu and Routing

Forms

Updated April 30, 2014

asked on April 29, 2014 • Show version history

So I want to have a drop down menu on a form that will send the task to one of several people, depending on the section on the menu. I have setup an exclusive gateway, and several outflows to route to different approvals. On the outflow path condition, it's setup like this: /dataset/Topic="Choice1" and I have the arrow connecting to the user task. Whenever I try and run the process, I fill in the form pick the choice and submit it. The task never gets assigned to me. When I look in the results log, it just says "Failed" When I open it up, it just says "Terminated".

Any ideas as to why this is? I have tried user tasks and service tasks, as well as conditions on each specific outflow. I can't understand why this is working properly.

0 0

Answer

APPROVED ANSWER

replied on April 29, 2014

I had a coworker look over my work, and it actually turned out to be a error in spelling on the assigning a value to choices. Thanks for your help!

0 0

Replies

replied on April 29, 2014

How are you telling Forms to assign it to a user depending on what is selected in the drop down field? Can you post a screenshot of it?

0 0

replied on April 29, 2014

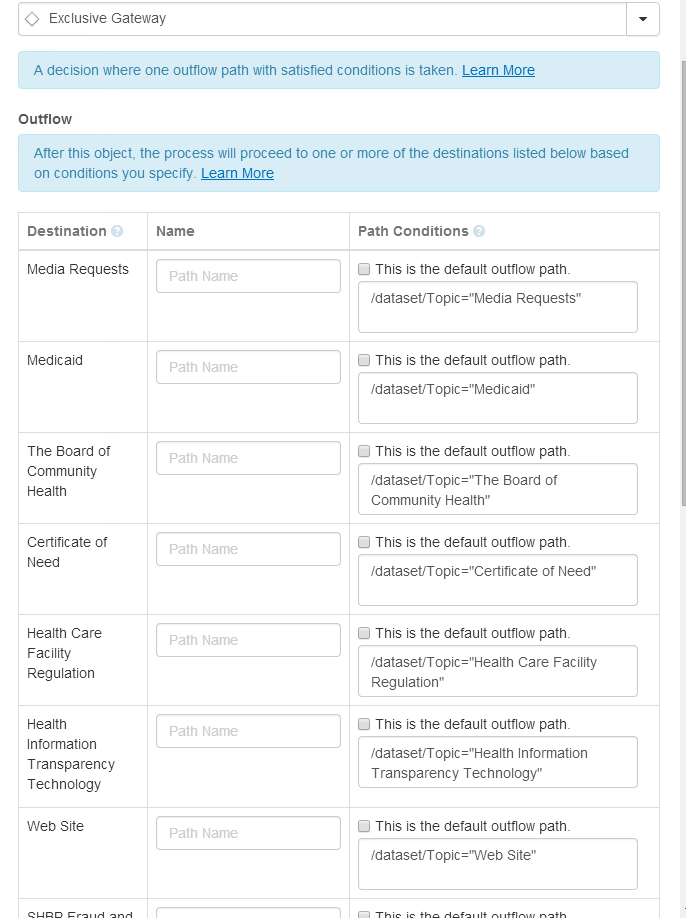

I've attached the department selection and the outflow. I had user in the initial example, but that is probably a confusing term.


| Download


| Download

0 0

replied on April 29, 2014

As far as I can see this is setup correctly. Can you post how your user task is setup? Have you validated your process by clicking the green checkmark in the Process Modeler?

0 0

APPROVED ANSWER

replied on April 29, 2014

I had a coworker look over my work, and it actually turned out to be a error in spelling on the assigning a value to choices. Thanks for your help!

0 0

replied on April 30, 2014

Keep in mind that you can also use a field variable when you're specifying who to assign a user task to. If the field value contains a properly formatted username, you can use it.

For example, you could use the same drop-down field and assign the appropriate username as the value for each choice. Then, when configuring your user task, you'd specify the field variable for the drop-down field.

Doing something like this isn't appropriate for every process, but if each outflow path is mostly the same (just with a different approver for a user task) this would simplify the process significantly.

0 0
