Question

Show variable names with field location on form

Forms Classic Form Designer Version 11

Updated one day ago

asked two days ago • Show version history

Whether looking at variable names in the Variable list, in the Variable Management menu, or looking at the form in the CSS/JavaScript tab, I can't find a way to show the variable names with the fields on the form layout. I have 7 forms for which I am going to need to map multiple fields over to a new template in the repository. I want to export a form copy that shows each field with the corresponding variable name so that the end user can mark which fields he wants to be included in the template which I would use to create the template fields and to choose the correct variables for each field in the Configure Fields menu of the Save to Repository task. Is there a way to do this? If not the location of the fields on the form layout, just a list that shows the name of the variable with the name of the field would help. It seems this would be a column in the Variable Management menu, but only the variable name and field type are listed there, not the field name.

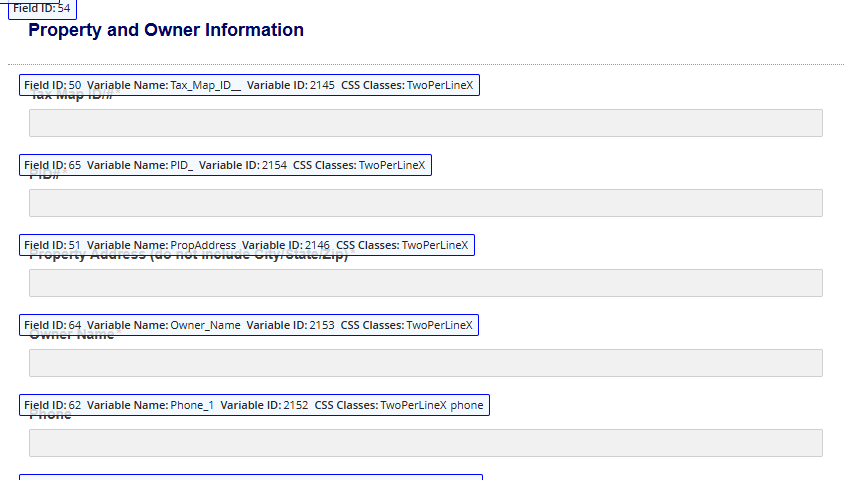

UPDATE: If I convert this form to a new Form Designer version, the CSS tab allows me to see the variable names with the fields, however, I can't seem to find a way to export/print that. I suppose I could attempt a scrolling screenshot but the way the variable info overlaps the actual fields makes it difficult to see the fields below.

0 0

Replies

replied one day ago

Hi Vikki,

If you just need a list exported you can run this sql query on database:

select cf.label as 'field label', cf.position as 'field position', m.display_name as 'variable name' from [cf_fields] cf
left join [cf_bp_dataset] cbd on cf.attribute_id = cbd.attribute_id
left join [members] m on cbd.member_id = m.id
where cf.form_id = {YOUR_FORM_ID} and cf.attribute_id is not null and cf.type != 'table-end' and cf.type != 'collection-end'
order by cf.position

Please note that when a variable is used on multiple forms the field names could be different on different form so the query need to include the form id.

2 0

replied one day ago

It would take some manual work, so this may not be a viable solution, but you could add the variable name as "Text Below" on each field.

0 0
