Quick Fields 11: Barcode is read in sample test, but won't read when scanning document

asked on November 4, 2024 Show version history

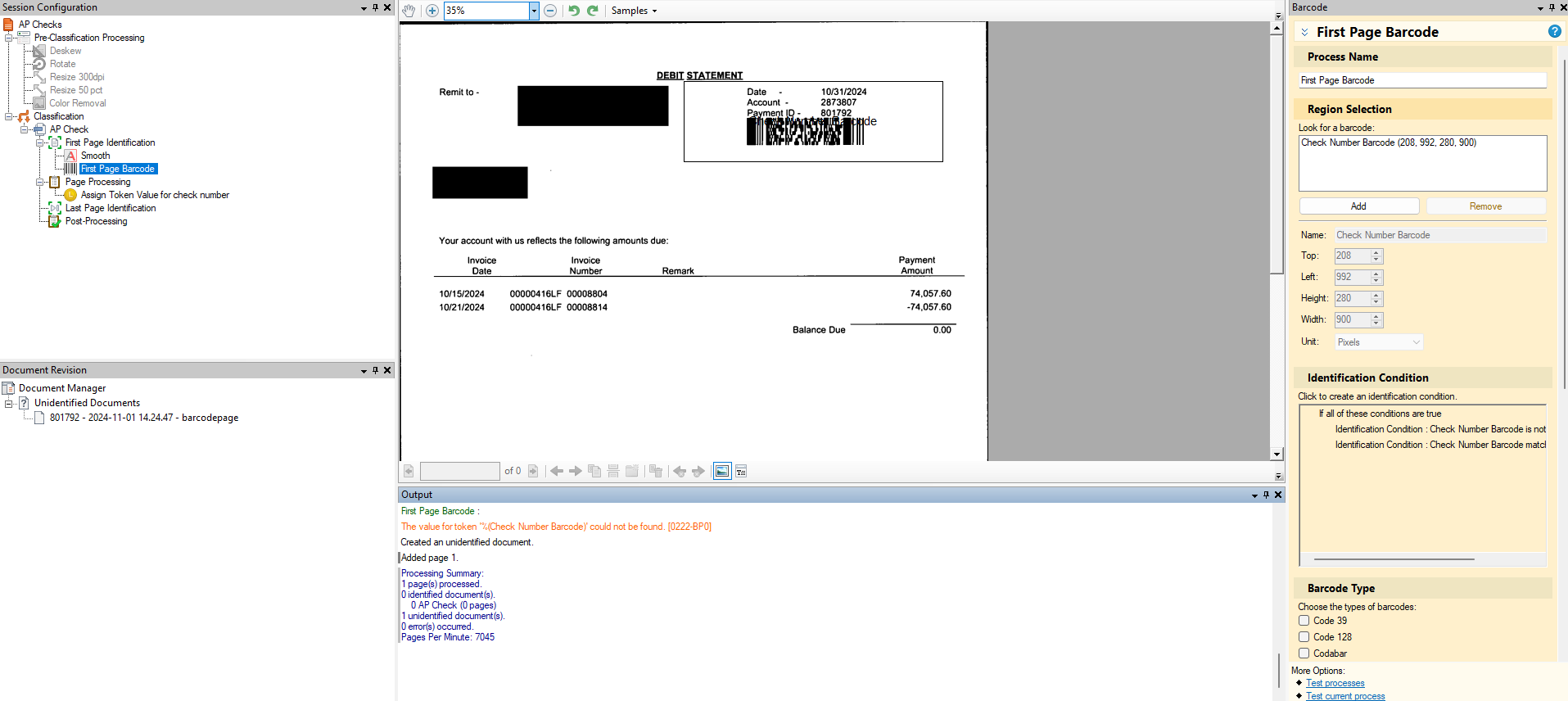

I have a session with a Barcode as the First Page Identification. I scanned the document for the sample page and created a zone for the barcode. Testing this process, the barcode is successfully read. However, the barcode fails to be read when scanning the actual document.

Note: This is a file that was originally scanned on a Canon scanner and stored as a PDF. I am importing the PDF into LF as Laserfiche Pages, then testing the barcodes in QF.

I have tried a few things to troubleshoot:

  • Screen capture of barcode page and then create new PDF from the jpg image: This resulted in a successful scan of the new PDF document.
  • Exported just the barcode page as a new document in LF: This resulted in a failed scan



Please find attached:

  • "Test Scan.pdf" document - this is the PDF created from a screen capture. It succeeds when I scan it.
  • 801792 - barcodepage.pdf - this is a single page PDF of the original barcode page. It fails when I scan it.
  • AP Checks.qfx - I'm unable to attach this file...even when using an 8 kb file as the sample page, the qfx file is 6.5mb. This is a pretty simple session file; just a Smooth action on First Page Identification, then a barcode region which identifies a PDF417 barcode and conditionally looks for regex \d* in the barcode. The Page Processing section as a token assignment for the barcode value.



Any help would be appreciated!











Test Scan.pdf (58.12 KB)
0 0

Answer

SELECTED ANSWER
replied on November 4, 2024

If you remove/disable the Smooth activity, does it work?

0 0

Replies

replied on November 4, 2024

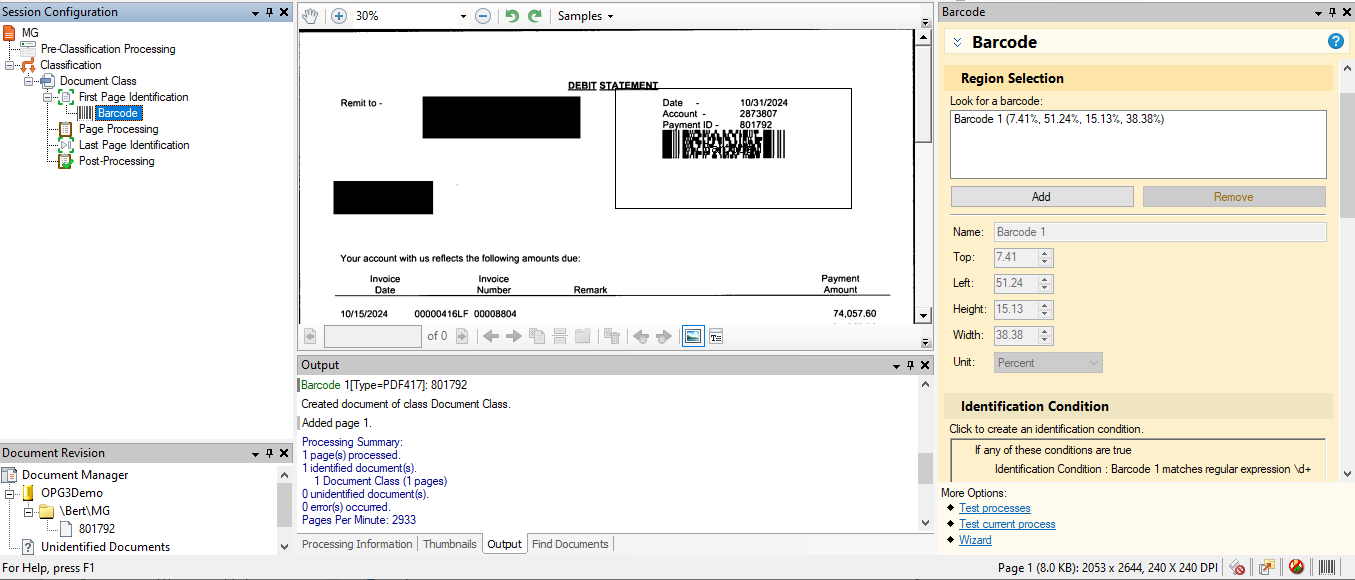

I imported your 801792 - barcodepage.pdf into my repository, converting it to LF (TIFF) document during the import.  I then made a simple QF session that scans the barcode and puts the value into the name of the document.  It scanned and read the barcode without any issue.

0 0
replied on November 4, 2024

Hi Bert. Thanks for testing! I tried a smaller, more targeted zone, like you did, but it's still not working. When I click 'Test current process', it works...it just doesn't work when I scan the document.



0 0
SELECTED ANSWER
replied on November 4, 2024

If you remove/disable the Smooth activity, does it work?

0 0
replied on November 4, 2024

Yes...that was it.  I had added that because another test document wouldn't scan without it.
