Thanks Zachary,

I am actually not using look up I am adding the options manually but want the User to be able to search through the list. I have done this when i created a template field in the metadata section but the form designer does not have that capability. Checkbox will work but i cannot search a check box and again, where the USer has a long list of options to select, it might be a bit awkward going through the ist of names one by one without being able to narrow the list.

The dropdowns (checkbox and radio converted to dropdowns as well) will all have the "search to narrow" ability in LF12!

Thanks. But for the moment is there a way to achieve this or even add a scroller to the Check box?

You cant add the search functionality yourself, but if you want to make it take up less vertical space and scroll inside the field instead you can use the following CSS. Add this class to your field "max-height-checkbox" and note each checkbox row is 29px so you can calculate how many you want to show.

.max-height-checkbox .cf-field {
   max-height: 145px;
   overflow: auto;
}

Thanks Zachary,

This is the kind of solution that will satisfy. But please how do i add this to the checkbox field?.

Am using the new form designer?

Add the class to the checkbox field "max-height-checkbox". It is under the advanced tab in the field settings. Then go to the CSS pane on the top right and paste that CSS there.

Thanks Zach,

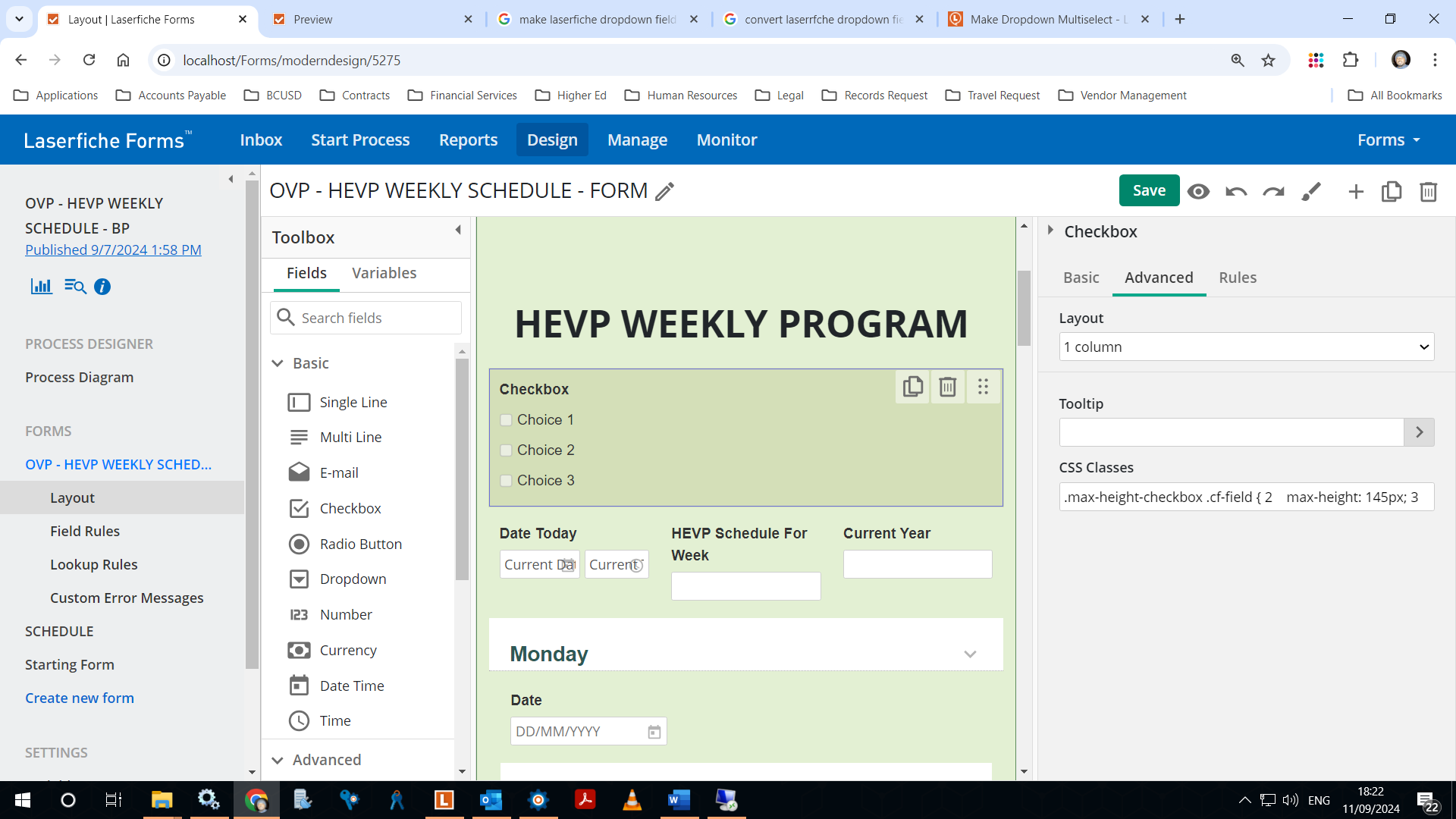

I added to css classes field. but it has not changed.

you should add the class "max-height-checkbox" in your screenshot where it says CSS Classes.

Then you would paste the rest of the code into the CSS pane which should be under styles (the paint brush top right) and CSS tab of the right pane.

.max-height-checkbox This is the class right?

for CSS Field

.cf-field {

max-height: 145px;
overflow: auto;

Like so?

CSS Classes (Field setting): "max-height-checkbox"

Styles -> CSS:


.max-height-checkbox .cf-field {
   max-height: 145px;
   overflow: auto;
}

Hello Zachary,

Sorry for all the bother.

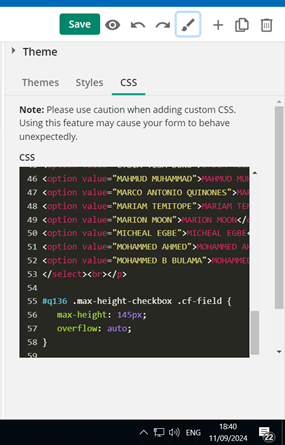

This is what i specified in the cssfield;

Then in the class field

Hasnt worked yet Am using New Designer

in the textbox in your top screen how the only text that should be there is:



.max-height-checkbox .cf-field {
   max-height: 145px;
   overflow: auto;
}

Thanks Zachary it worked perfectly. But please i have more request. How do i reduce the text size of the options in the check box?

In general I would try to avoid reducing font sizes, as it is already as small as possible to support visually impaired audiences, but if its something the business needs you can just modify the same CSS here with whatever size you want:

.max-height-checkbox .cf-field {
   max-height: 145px;
   overflow: auto;
   font-size: 12px;
}

Thanks again Zachary.

Please is there a way to make selected options display in a list rather than within the check box? Because then i Cant see the remaining selectiosn cos they are hidden within the scroll?

See image . Only the selections at the top are visble not those within the scroll

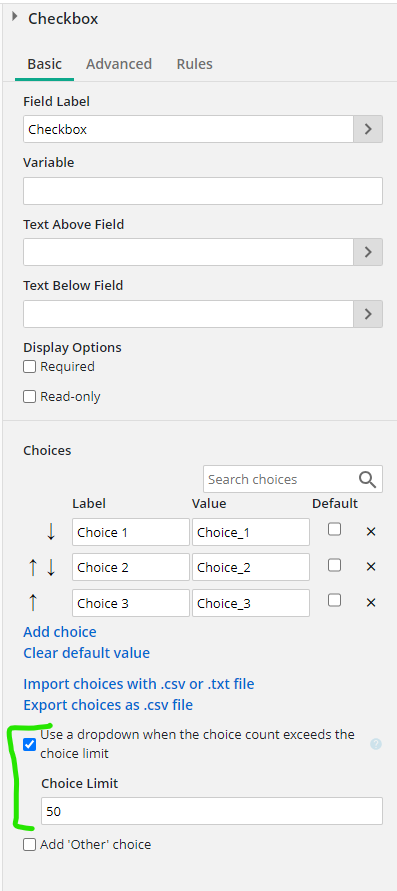

Does your checkbox field have this option highlighted in green?

No it doesnt.

Am using the New Form Designer

Then not until you update Forms. It looks like the latest version of forms version 11 has the checkbox to dropdown conversion. Otherwise the scrolling is your only option.

Thanks Zachary I have the updated version of forms on the live server and has that available.

So what do i do when i get to live server/? And will it display the selected options in a list?

You should probably have all environments match the same versions so you dont need to worry about anything. In the live server you would have to manually go into the process and change this setting to "Use a dropdown" and set the choices value to 0 or more depending on your use case.

Working perfectly. Thanks so much.

Please i have another similar request, how can i make the date field change to display first day of the week(MOnday in this instance) when i select the week number in another field?

So i have a Week field in which i enter the current week. And i have date field which is currently sent to current date. But i want a scenario where once I enter the week (Say week 39) the date field will display the first monday of that week?
