There's a couple things to address here:
- IF needs to be outermost formula
- OR returns true or false as the value, so if you put it on the outside you won't get what you want. In contrast, IF returns the values you define for true or false (i.e., you shouldn't have multiple IFs in this case)
- You're working with a table, which means you need to utilize the INDEX function
- Table variables are multivalued, so if you reference the variable without indexing it would return all values not just the current row; you may not notice this with only one row, but it'll cause issues if you ever have multiple rows because checking one row would affect all the other rows
- The = TRUE part is not necessary because the checkbox variable is already returning a true/false value that can be used directly in the calculation.
The first step is addressing the indexing. You don't want this to evaluate every row of the table, just the relative row, so you need to use INDEX in combination with the ROW() function.
The ROW() function, which is really only for use within a table or collection, retrieves the row number for the field with the calculation and this can be used to select the relative/associated values of other table variables in the same row.
INDEX(Table.Checkbox.Choice_1,ROW())
This will give you the true/false value for checkbox choice 1 only from the respective row.
Note that you can't use a single index function on multiple items at once, you need index around each individual selection/column you want to reference.
The next step is to account for all the options. Since you want it to appear if any of the boxes are checked, then you want an index function for each option, then you can put them all in an OR
OR(INDEX(Table.Checkbox.Choice_1,ROW()),INDEX(Table.Checkbox.Choice_2,ROW()),INDEX(Table.Checkbox.Choice_3,ROW()))
We've established that in this case the index function would be getting the true/false value, so this OR statement checks them each and returns true when it hits one that is true.
step is to evaluate the value, and since the calculation above would already return a single true/false value, we can just do the following where the OR statement above is inserted as the condition:

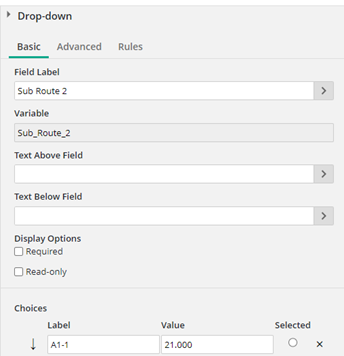

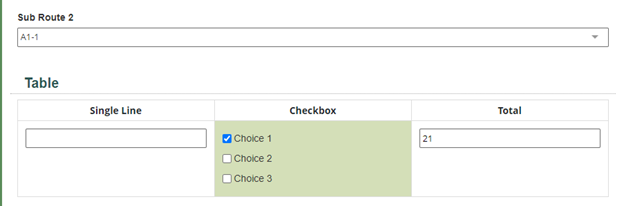

IF(OR(INDEX(Table.Checkbox.Choice_1,ROW()),INDEX(Table.Checkbox.Choice_2,ROW()),INDEX(Table.Checkbox.Choice_3,ROW())),Sub_Route_2,0)
Just be mindful to make sure your parentheses and commas are in the right places; I usually try to build the calculations out in pieces like this to make them more manageable.
