Syntax for "define token values" dialog when testing multi-value tokens?

asked on June 29, 2022

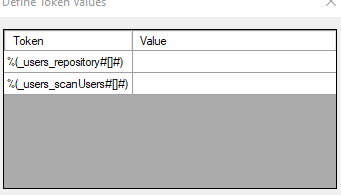

I am testing a workflow that uses the magnifying glass "search repository". The purpose of the search is to iterate over a group of users, then give provide the result count for each user. Trouble is, I can't get the token dialog syntax correct in designer when I am testing it. I would guess it would be "smithj, jonesd, simpsonh", but that's not working; I get 0 results. I can test it out by actually running the workflow, but that's not efficient.

0 0

Answer

SELECTED ANSWER
replied on June 29, 2022

Your token definition should be just the values.

Where you use it, it looks like you're trying to feed the values as a comma-delimited list? So that would be %(_users_repository#[, ]#)

Then when you try to test it, you want to supply the comma-delimited value as the "final value".

When workflow runs, the back-end will take your multi-value token and apply formatting to it before feeding it to the Search Repo activity. But when testing through the UI, you are expected to do that yourself.

0 0

Replies

replied on June 29, 2022

When testing activities, this dialog expects the "final" value of the token and it will not apply formatting on its own. Semi-colon delimited values can be specified for multi-value tokens.

However, in your screenshot, the expected value is not a multi-value token, it looks to be expected a list of values with no spaces between them? You'd want to use a delimiter in your token formatting (so it should be something like #[,]# or #[ ]# for a comma or space delimited list).

0 0
replied on June 29, 2022

Thanks, Miruna, this is helping. First, the way I have written my multi-value tokens is #[]#, which means it's not expecting a space. What's in between the square brackets is a delimiter, I see that. I didn't know that meant anything. I'll probably end up going with #[,]#. So now I am unclear on how to create my token of values.

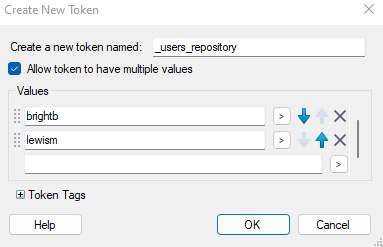

Here is where the values are entered, and how I originally did it.

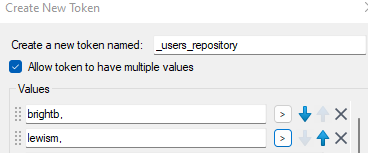

If I use a comma, should it be like this? Commas, no spaces, all entered on one line?

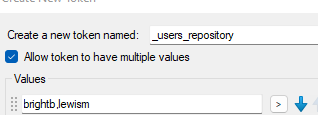

Or is it like this?

Would I need token tags with these?

0 0
SELECTED ANSWER
replied on June 29, 2022

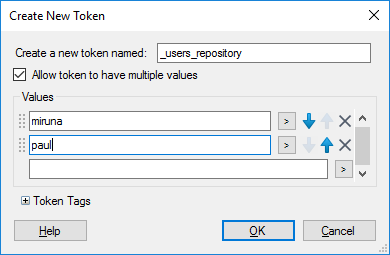

Your token definition should be just the values.

Where you use it, it looks like you're trying to feed the values as a comma-delimited list? So that would be %(_users_repository#[, ]#)

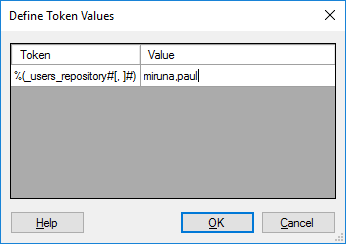

Then when you try to test it, you want to supply the comma-delimited value as the "final value".

When workflow runs, the back-end will take your multi-value token and apply formatting to it before feeding it to the Search Repo activity. But when testing through the UI, you are expected to do that yourself.

0 0
