The App is on a perimeter network from the LFDS server.

Powershell Success

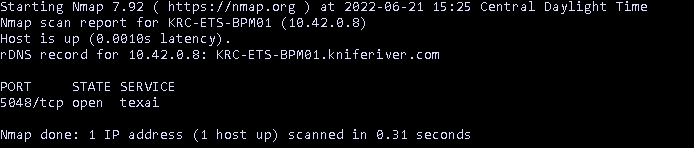

Nmap Success

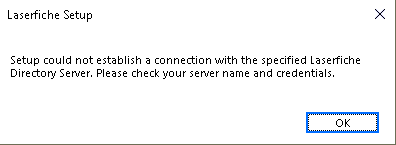

This is why I wanted more info, the error does not appear to be a network outage

Hi Chad, in this case it is expected for this connection to fail. The Laserfiche app installer can only utilize Windows authentication to connect to LFDS and if the app machine is on an untrusted domain, it will not be able to authenticate (as it is trying to do so locally). We recommend downloading app licenses directly from LFDS and importing the license file into the app installer for these DMZ / perimeter network setups.

Oh by perimiter network I did not mean off the domain, the machine is joined to the domain. Maybe I should use the word alternate subnet? They call it a DMZ. There is too much terminology these days.

Very specifically, the server exists on another subnet, there is a router between the 2 networks, but both servers have full network access to each other and the domain controller. The only difference is the app server network does not have access to the entire internal network because of the router between the 2.

Hmm in that case, if the machine is on the domain yet cannot authenticate against it, it's likely a configuration issue. Domain authentication only cares about domain topology. Some guesses:

1. Maybe that machine isn't actually on the domain?
2. Maybe the domain controller being reached doesn't contain the entry you're trying to authenticate with (is it a RODC or something that doesn't have all the objects in it?)

I have a domain account and I can login to both servers with the same account and password, if I change my account password on any machine, it applies to both machines. So I can't see anything wrong with the domain from my perspective.

This is why I am looking for more information regarding the error, what exactly is preventing me from accessing directory server. I can not bring a case to IT unless I have the specifics of what is wrong.

I am not familiar with RODC.

Also when you connect to DS, you can manually supply your domain credentials, but this throws the same error.

Can you try the following tests?

1. When prompted to enter the LFDS address, use the IP of the machine instead. Did this help?
2. Launch the installer manually as the user you will be using to authenticate into LFDS
   1. Find the SetupLf.exe file in the installer files for the product you are installing
   2. Shift+right click the file and select "Run as different user"
   3. Input the credentials you are trying to use to authenticate into LFDS
   4. When prompted to select a "Log on as" value in the installer, select "Current user"

Tried both of these without any luck. However entering KRC-ETS-BPM01 is exactly the same as entering 10.42.0.8 since Names get converted by IP addresses by the name server.

Also when I select run as a different user, but enter the same credentials I logged into windows as, I am essentially telling it to run as me, which is the same as double clicking.

I did login and try both though, so no go.

In my original post I assumed that the network is not the problem and the credentials is also not the problem. I still belive that is true because I have verified this. There is something else wrong and the error message does not supply the specifics.

I'd suggest using the workaround (registering the app and downloading a license for it from LFDS, then importing that into the installer) or opening a support case for this.
