I agree this would be useful as a built-in activity type. Workflow creates XML temp files for certain activities like db lookups, so it can definitely create files on the disk.

I think the tricky part would be ensuring that the file for a bulk insert is created in a place that the SQL Server can access it for the import because that is something that could go wrong more easily. For example, WF could place a file somewhere SQL can't get it, or the WF service account may not have access to place the file where SQL can access it.

I have a couple of processes that use bulk insert via Workflow. I'll include some information about that below for anyone who might find it useful.

In my process, I'm receiving a txt flat file from another system via Import Agent, which I then insert into a SQL database using Workflow. If you're using data from another source you'd still need to build the file, but that can be done with a script if necessary and even if you have to loop to create the file I'd imagine that should still be faster than looping db inserts.

First, I have tokens that define the paths outside of the scripts so they're easy to maintain and I don't forget about them. The first points to the file I'll be using, and the second points to a custom folder on the SQL Server we have specifically for things like this.

The "Import Path" also includes subfolders; one is for the actual data file, and the other is for the template file I use to ensure the bulk insert reads the data properly.

When you're using a fixed-width flat file, the XML for the bulk insert would look something like this:

<?xml version="1.0"?>
<BCPFORMAT xmlns="http://schemas.microsoft.com/sqlserver/2004/bulkload/format" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<RECORD>
  <FIELD ID="1" xsi:type="CharFixed" LENGTH="1"/>
  <FIELD ID="2" xsi:type="CharFixed" LENGTH="19"/>
  <FIELD ID="3" xsi:type="CharFixed" LENGTH="12"/>
  <FIELD ID="4" xsi:type="CharFixed" LENGTH="12"/>
  <FIELD ID="5" xsi:type="CharFixed" LENGTH="3"/>
</RECORD>
<ROW>
  <COLUMN SOURCE="1" NAME="Code" xsi:type="SQLCHAR" LENGTH="1"/>
  <COLUMN SOURCE="2" NAME="LastName" xsi:type="SQLCHAR" LENGTH="19"/>
  <COLUMN SOURCE="3" NAME="FirstName" xsi:type="SQLCHAR" LENGTH="12"/>
  <COLUMN SOURCE="4" NAME="MiddleName" xsi:type="SQLCHAR" LENGTH="12"/>
  <COLUMN SOURCE="5" NAME="Suffix" xsi:type="SQLCHAR" LENGTH="3"/>
</ROW>
</BCPFORMAT>

Next, a script activity copies those files over to the "Export Path" on the SQL Server so the Bulk Insert has access to them in the next step of the process.

// get file path
string sourcePath = GetTokenValue("Import Path").ToString();
string destinationPath = GetTokenValue("Export Path").ToString();

// get file names
string file = GetTokenValue("Data File").ToString();
string format = GetTokenValue("Format File").ToString();

// default result value
bool success = false;

try {
    // check for source directory
    if(Directory.Exists(sourcePath)){
        // create target directory if it does not exist
        if(!Directory.Exists(destinationPath)) {
            Directory.CreateDirectory(destinationPath);
        }

        // get source file paths
        string sourceFile = Path.Combine(sourcePath,"Pending",file);
        string sourceFormat = Path.Combine(sourcePath,"Templates",format);

        // check for source files
        if(File.Exists(sourceFile) && File.Exists(sourceFormat)) {
            // copy files to target path
            File.Copy(sourceFile,Path.Combine(destinationPath,file),true);
            File.Copy(sourceFormat,Path.Combine(destinationPath,format),true);

            // set result
            success = true;
        }
    }
}
finally {
    // set result token
    SetTokenValue("Export Successful",success);
}

I use a try-finally with the "Export Successful" token holding the results so I can loop around and try again if it fails for any reason.

Then, I use a custom query activity to call Bulk Insert and import the data using the XML template.

BULK INSERT [#DataImport]
FROM 'D:\SQL Job Resources\FILE_NAME.txt'
WITH
(
	FORMATFILE = 'D:\SQL Job Resources\TEMPLATE_NAME.xml',
	KEEPNULLS
)

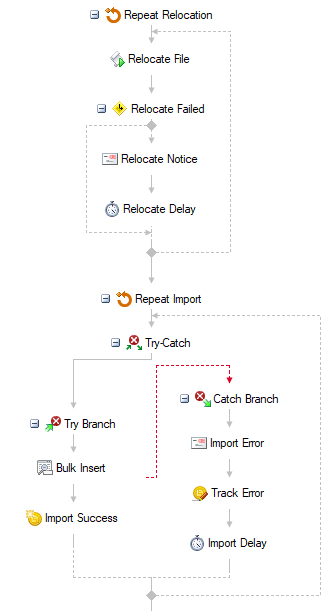

Here's how that part of the workflow looks

At the end of the WF I have another script that cleans up the completed files.
