Question

Waiting for a scheduler in DCC

Distributed Computing Cluster

Updated April 13, 2021

asked on April 13, 2021

Hi all

I have a problem with the DCC. I created a cluster with 3 members, 2 worker and a scheduler. In a workflow I sent a job to make pages and OCR. When I put the 3 members as a worker, all the works went to the main host. So, I made this host only a scheduler with the other 2 workers.

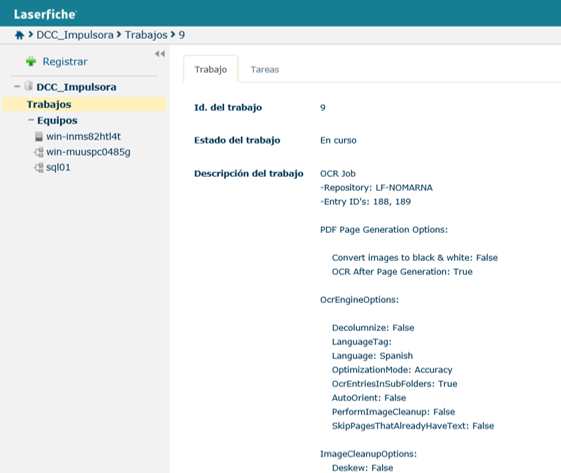

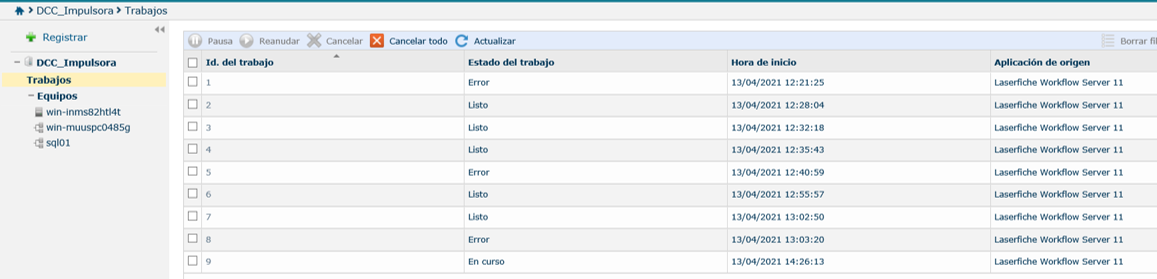

I run a new job with the Workflow. As you can see, the task 9 is on course.

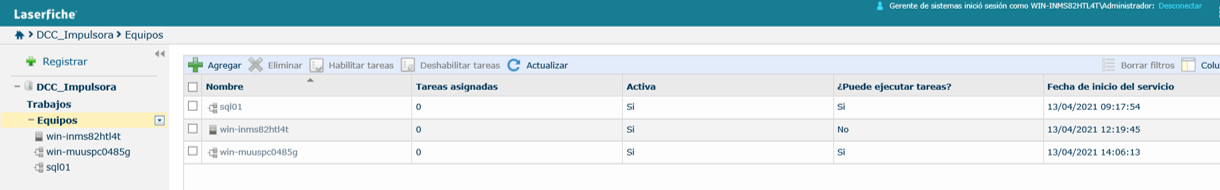

The configuration is 2 workers, the other one is no availabe to run jobs.

The job beguns... or at least looks like beguns...

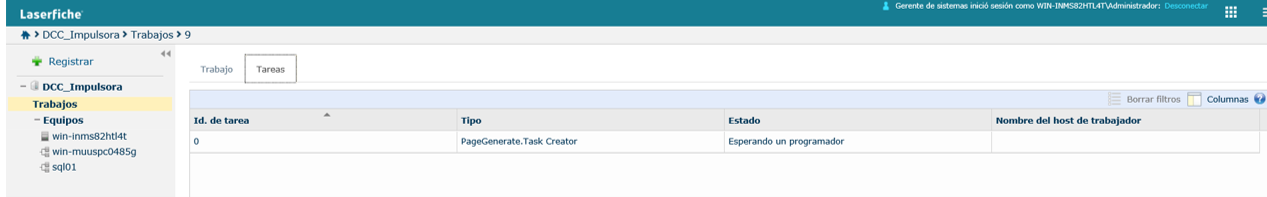

If I went to the taks, the job is on "waiting for a scheduler"

I don't know if I need to configure the other host as a scheduler or miss something in the configuration... but this jobs his waiting and no longer works...

Thanks in advance.

Pd. Sorry for the images, my installation is in spanish... I don't know if the state is waiting for a scheduler...

0 0

Replies

replied on April 13, 2021

It sounds like your installation is only licensed for one worker. The license should indicate how many workers you're licensed for (or there should be a message in the event viewer when the service starts).

0 0

replied on April 13, 2021

Hello

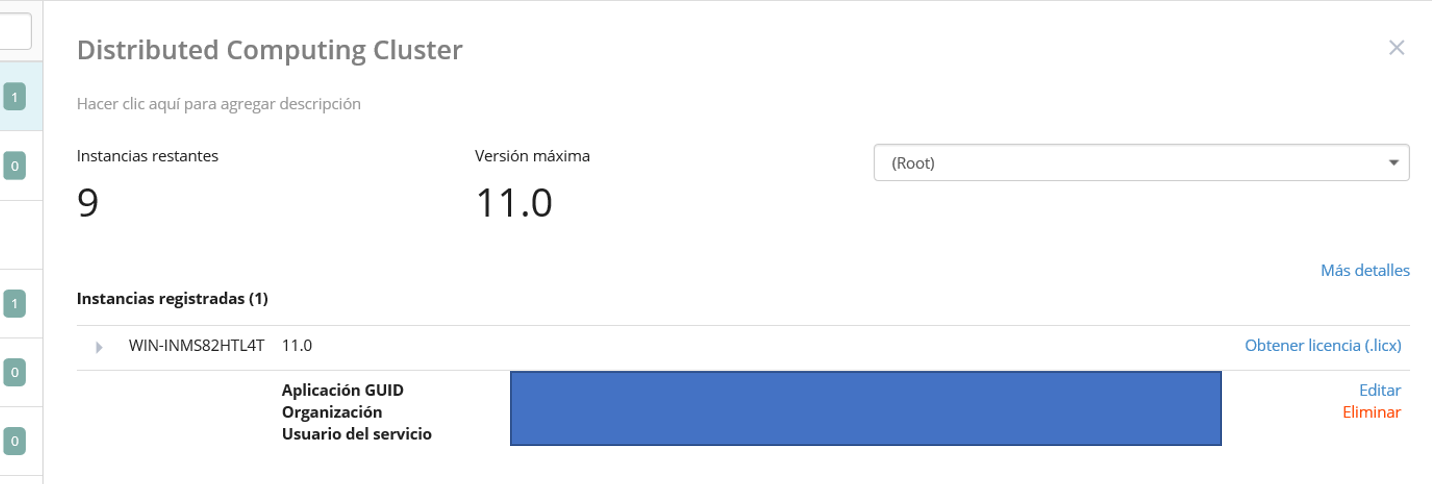

This is how my LFDS had the licenses:

How I configure the workers with a license to "work"? Because in the installation, only for the scheduler ask for a license...

0 0

replied on April 13, 2021 • Show version history

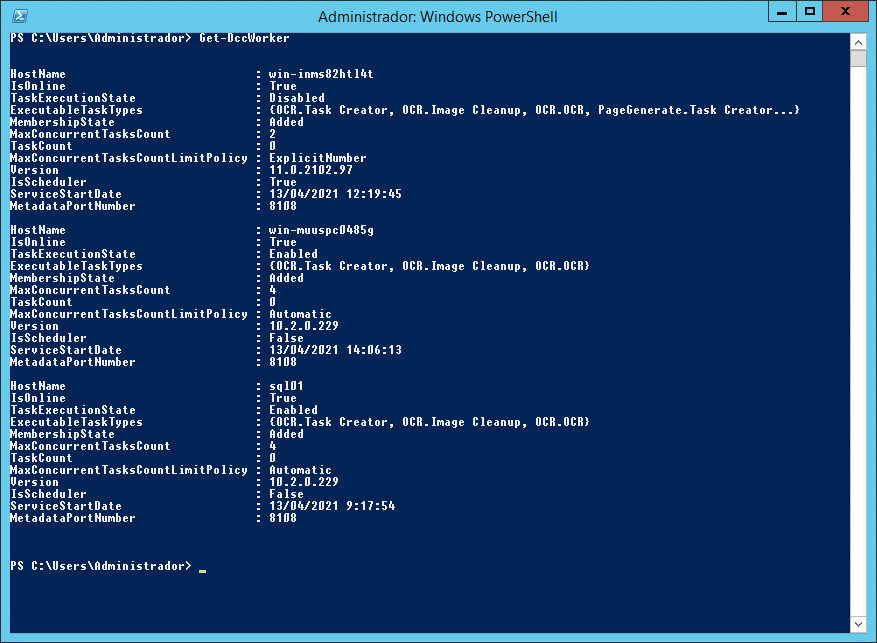

This is the configuration, via PowerShell

I had a Rio suscription.

0 0

replied on April 13, 2021

Unfortunately these screenshots don't have that information. On the scheduler, restart the DCC service, then look in the Windows event log under Applications and Services\Laserfiche\DistributingComputingCluster\Admin.

You should see something like this:

Laserfiche Distributed Computing Cluster Service started successfully.

Laserfiche Distributed Computing Cluster Service started successfully.

License:
Product ID: 62
Expiration date: 2/11/2022 12:00:00 AM
Maximum number of additional workers: 2
Allowing Undefined Modules
Defined modules:
-Name: OCR; Number of nodes: 3

Communication:
Starting main service using latest settings, succeeded.
Port: 8107
Security mode: None
Authentication mode: None

The maximum number of nodes should indicate how many workers are allowed.

0 0

replied on April 13, 2021

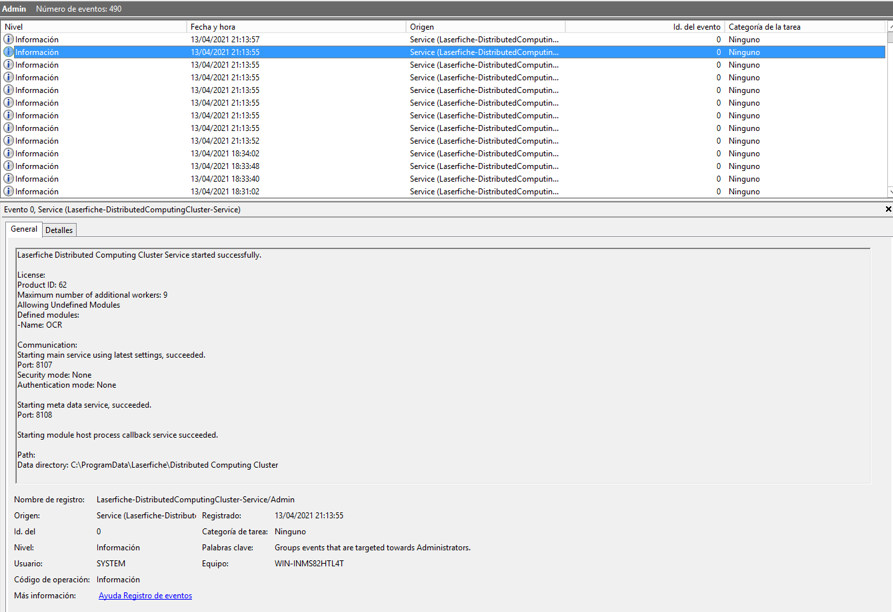

This is what I get:

Laserfiche Distributed Computing Cluster Service started successfully.

License:
Product ID: 62
Maximum number of additional workers: 9
Allowing Undefined Modules
Defined modules:
-Name: OCR

Communication:
Starting main service using latest settings, succeeded.
Port: 8107
Security mode: None
Authentication mode: None

Starting meta data service, succeeded.
Port: 8108

Starting module host process callback service succeeded.

Path:
Data directory: C:\ProgramData\Laserfiche\Distributed Computing Cluster

It's say that I have 9, but only one Worker "work"

0 0
