HOWTO: Use a ESRI ArcGIS Online Map in Forms 10.x

posted on August 6, 2020 Show version history

Due to the ever growing restrictions of using Google Maps I decided to quickly pull together a way to use our own ArcGIS Online maps for use in our internal and external Laserfiche Forms.

By utilizing ESRI’s ArcGIS JavaScript 4.x library and your own in-house or Online ArcGIS Server you can easily add a map to your form. The map can even perform functions such as searching for locations and even reverse geocode map clicks which can then fill out a location text box or even a Laserfiche Form Address block.

This sample also allows you to use your own ArcGIS portal maps. Simply fill in the portal id and url variables in the code to access it.

Learn more about ESRI ArcGIS Online at https://www.arcgis.com/index.html and https://developers.arcgis.com/javascript/

To begin create a new Laserfiche Form and add a Custom HTML Element to it. Copy and paste the following html code in the HTML content of the element:

<div id="viewDiv"></div>

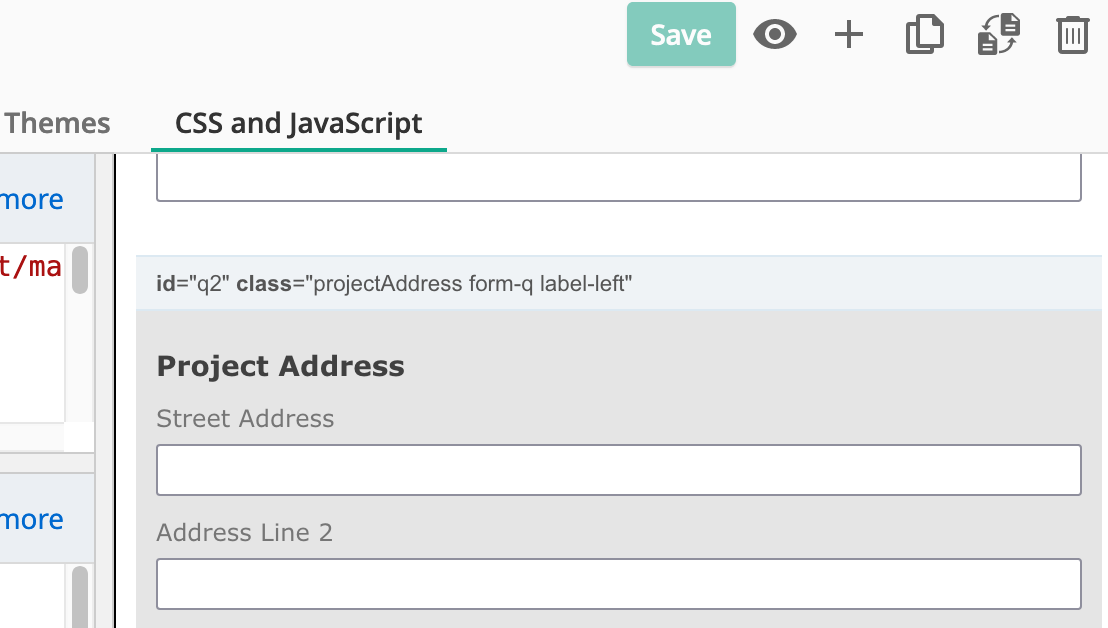

In the CSS and JavaScript section of the form designer copy and paste the following code:

CSS

@import "https://js.arcgis.com/4.16/esri/themes/light/main.css";

#viewDiv {
  padding: 0;
  margin: 0;
  height: 600px;
  width: 100%;
  background-color: #ffffff;
}

JavaScript

// Name ID of the field that will hold the returned latitude
var field_lat = "Field2";

// Name ID of the field that will hold the returned longitude
var field_lon = "Field3";

// Name ID of the field that will hold the returned location data
var field_location = "Field4";

// LF Forms Address Block Name ID
var field_address_block = 'Field5';

// Name ID of the DIV element that will display the map. This name should also match the one used in the CSS
var map_container = "viewDiv"

// Name of the basemap that will be used
// ESRI Basemaps - topo,streets,satellite,hybrid,dark-gray,gray,national-geographic,oceans,osm,terrain,dark-gray-vector,gray-vector,streets-vector,streets-night-vector,streets-navigation-vector,topo-vector,streets-relief-vector
var default_basemap = "topo-vector";

// Starting map center latitude
var start_lat = 33.52638;

// Starting map center longitude
var start_lon = -81.72373;

// Starting zoom level
var start_zoom = 12;

// Location of the map search box
var map_searchbox_location = "top-right";

// URL of the ArcGis JavaScript Library
var arcgis_script_url = "https://js.arcgis.com/4.16/";

// Cache the ArcGIS JavaScript Library?
var arcgis_script_cache = true;

// Rounding factor for clicked latitude and longitude
var latlon_factor = 100000000000000;

// Portal Map Options. ID and URL are required
var portal_map_id = "";

var portal_map_url = "";

// Click marker symbol variables
// Click marker style
var marker_symbol_click = "simple-marker";

// Click marker type
var marker_symbol_type = "point";

// Click marker symbol color [r,g,b]
var marker_symbol_color = [255,10,10];

// Click marker outline color [r,g,b]
var marker_symbol_outline_color = [255,255,255];

// Click marker outline width
var marker_symbol_outline_width = 2;

// Turn on/off console loging
var debug = true;

$.ajax({
    url: arcgis_script_url,
    cache: arcgis_script_cache,
    dataType: "script",
    success: function(data){
    require(["esri/portal/PortalItem",
             "esri/tasks/Locator",
             "esri/widgets/Search",
             "esri/views/MapView",
             "esri/WebMap",
             "esri/Graphic"],
            function (PortalItem,
                       Locator,
                       Search,
                       MapView,
                       WebMap,
                       Graphic) {


      var webmap = new WebMap({});

      if(!portal_map_url.length == 0 && !portal_map_id.length == 0){

        webmap.portalItem = new PortalItem({portal: portal_map_url,
                                            id: portal_map_id
                                           });

      }else{

        webmap.basemap = default_basemap;

      }

      var view = new MapView({
        map: webmap,
        container: map_container,
        center: [start_lon,start_lat],
        zoom: start_zoom,
      });


      var search = new Search({
        view: view,
        resultGraphicEnabled: false,
        popupEnabled: true
      });

      search.on("select-result", function(evt){

        if(debug)
          console.log("The selected search result: ", JSON.stringify(evt));

      });

      view.ui.add(search, map_searchbox_location);

        view.on("click", function(evt) {

          if(debug)
            console.log('Click event object: '+ JSON.stringify(evt));

          var lat = Math.round(evt.mapPoint.latitude * latlon_factor) / latlon_factor;
          var lon = Math.round(evt.mapPoint.longitude * latlon_factor) / latlon_factor;

          if(debug){
            console.log('Clicked Latitude: '+ evt.mapPoint.latitude + ' (Rounded: '+ lat +')');
            console.log('Clicked Longitude: '+ evt.mapPoint.longitude + ' (Rounded: '+ lon +')');
          }

          if(!field_lat.length == 0)
            $('#'+ field_lat).val(lat);

          if(!field_lon.length == 0)
            $('#'+ field_lon).val(lon);


          search.clear();

          view.popup.clear();

          reverse_geocode(search,evt);

          var graphic = new Graphic({
            geometry: {
              type: marker_symbol_type,
              latitude: evt.mapPoint.latitude,
              longitude: evt.mapPoint.longitude,
              spatialReference: view.spatialReference,
            },
            symbol: {
              type: marker_symbol_click,
              color: marker_symbol_color,
              outline: {
                color: marker_symbol_outline_color,
                width: marker_symbol_outline_width,
              },
            },
          });

          view.graphics.removeAll();
          view.graphics.add(graphic);

        });

      });
    }
   });


function reverse_geocode(search,evt){

            if (search.activeSource) {
            var geocoder = search.activeSource.locator; //Defaults to ESRI World Geocode Service
            var params = {location: evt.mapPoint};
            geocoder.locationToAddress(params).then(
              function (response) {

                if(debug)
                  console.log('Geocoder response object: '+ JSON.stringify(response));

                if(debug)
                  console.log('Address object for '+ JSON.stringify(evt) +': ' + response.address);

                var location_attributes = response.attributes;

                // Location
                if(!field_location.length == 0)
                  $('#'+ field_location).val(location_attributes.LongLabel);

                // Address Block - Street Address
                var field_address_street = field_address_block +'_DSG0';
                if(!field_address_street.length == 0)
                  $('#'+ field_address_street).val(location_attributes.Address);

                // Address Block - Address Line 2
                var field_address_two = field_address_block +'_DSG1';
                if(!field_address_two.length == 0)
                  $('#'+ field_address_two).val(location_attributes.Block);

                // Address Block - City
                var field_address_city = field_address_block +'_DSG2';
                if(!field_address_city.length == 0)
                  $('#'+ field_address_city).val(location_attributes.City);

                // Address Block - State / Province / Region
                var field_address_state_province_region = field_address_block +'_DSG3';
                if(!field_address_state_province_region.length == 0)
                  $('#'+ field_address_state_province_region).val(location_attributes.Region + ' ' + location_attributes.Territory);

                // Address Block - Postal / Zip Code
                var field_address_postal_zip_code = field_address_block +'_DSG4';
                if(!field_address_postal_zip_code.length == 0)
                  $('#'+ field_address_postal_zip_code).val(location_attributes.Postal);

                // Address Block - Country
                var field_address_country = field_address_block +'_DSG5';
                if(!field_address_country.length == 0)
                  $('#'+ field_address_country).val(location_attributes.CountryCode);


              },
              function (err) {

                if(debug)
                	console.log('No address object found at: ' + JSON.stringify(evt.mapPoint));

                if(!field_location.length == 0)
                  ('#'+ field_location).val ("No address found.");
              });
          }

}

After applying all the code save the form and click the preview button.



Hope this helps and corrections are always welcomed!

Wesley Funderberg

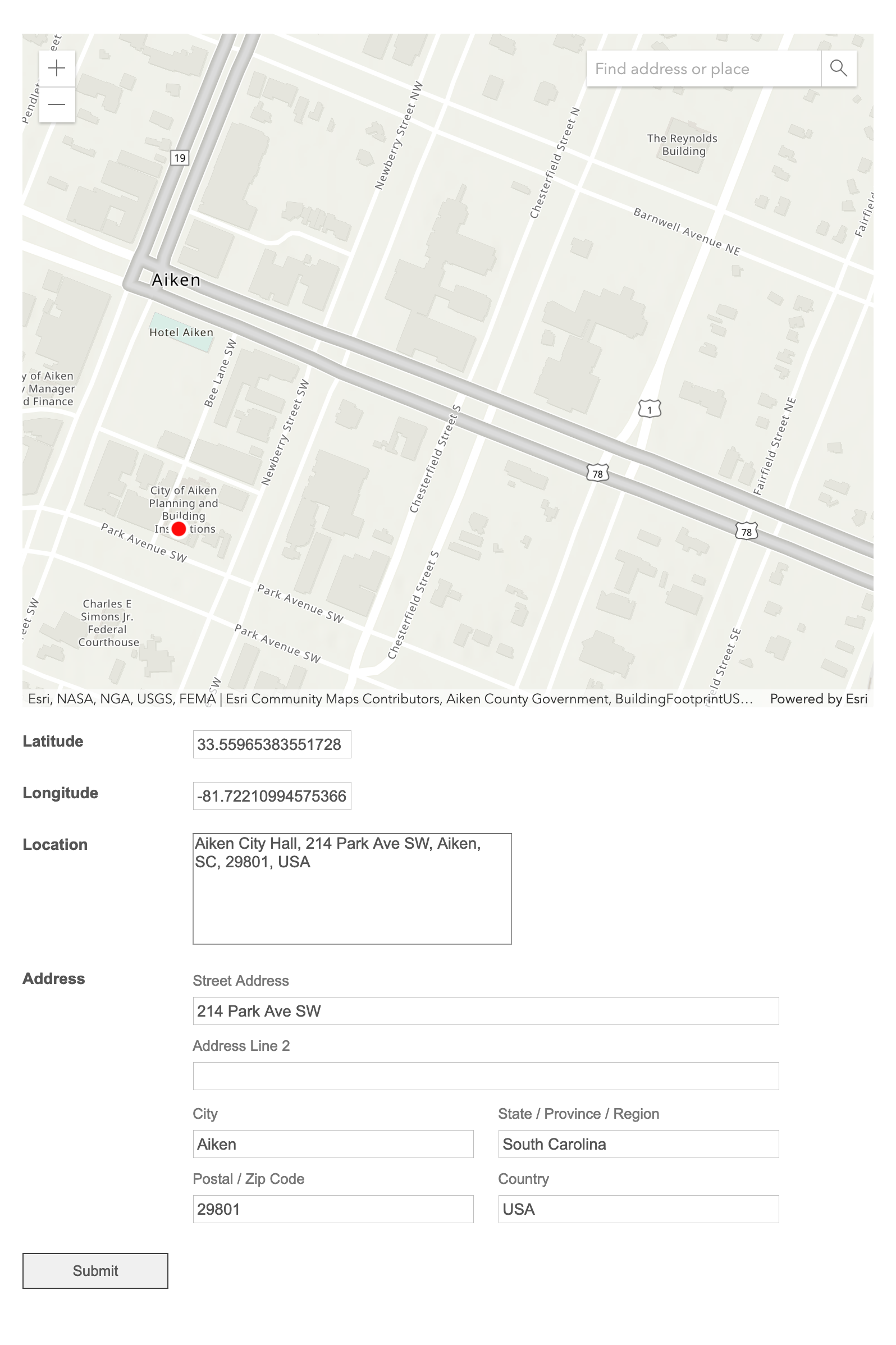

Screenshot_2020-08-06 Preview.png
7 0
replied on September 8

Hi Wes!

I used your code and our City Management loves it!

I am trying to figure out how to display the pointer after a user saves the form as a draft.

Any ideas?

Thanks!

Pete

0 0
replied on September 9

Hello Pete,

 So glad to hear it! Hopefully I can tackle that issue soon as I am needing to do the same. If I come up with something, I will post the update here.



Thanks!

0 0
replied on March 1, 2021

This is a great start for what I'm trying to do.  Is there a way to use LF Forms' Geolocation element, defaulted to Current Location, to feed a Latitude and Longitude to your code and return a City and State?



0 0
replied on March 5, 2021

Mike,

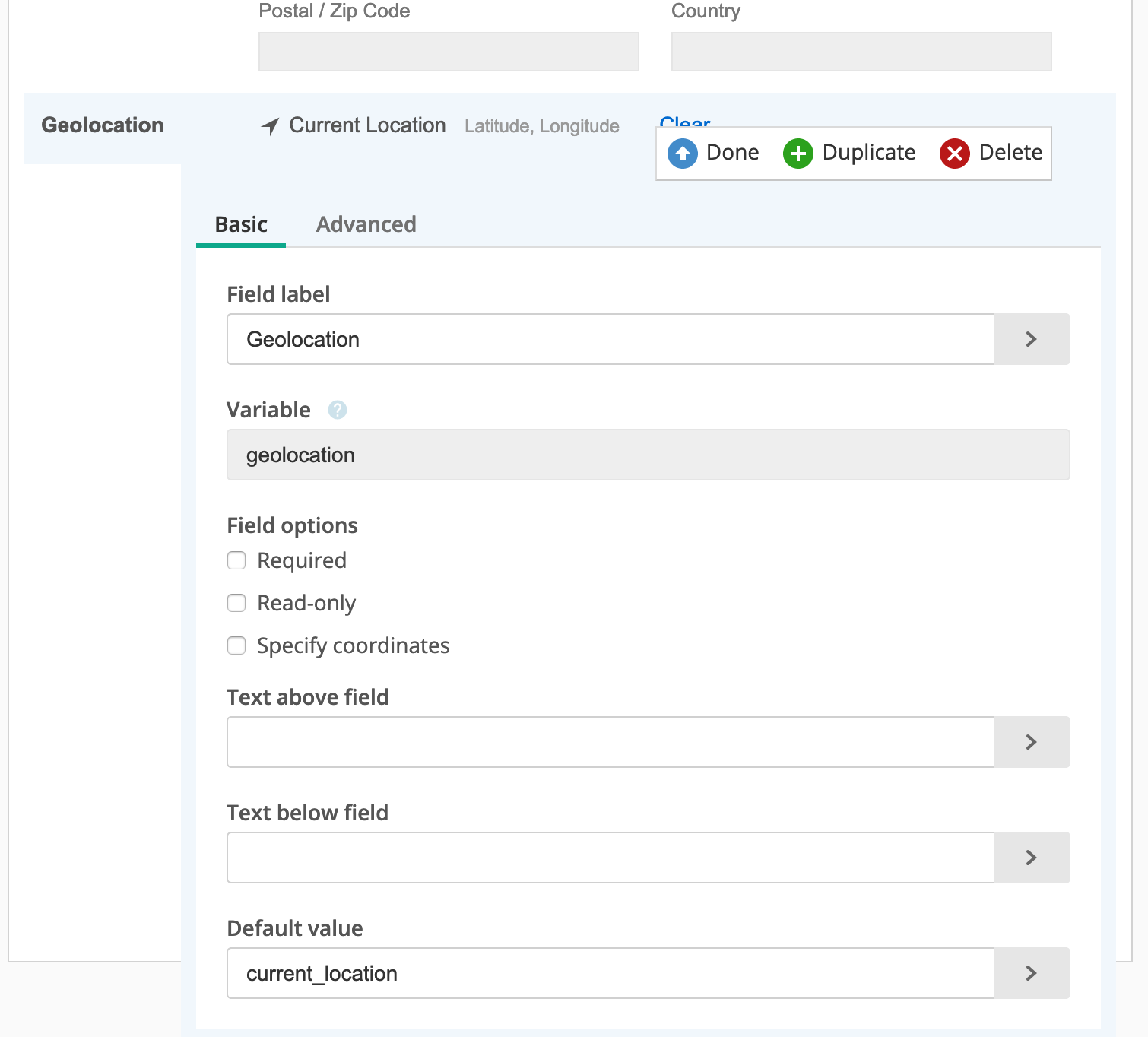

Please know that I quickly threw this together with only minimal testing done. Make sure that you place the current_location value as the Default value in a GeoLocation form module or it will not work.

@import "https://js.arcgis.com/4.18/esri/themes/light/main.css";

#viewDiv {
  padding: 0;
  margin: 0;
  height: 600px;
  width: 100%;
  background-color: #ffffff;
}
var mapview;
var clickpoint;
var search;

// Name ID of the field that will hold the returned latitude
var field_lat = "Field2";

// Name ID of the field that will hold the returned longitude
var field_lon = "Field3";

// Name ID of the field that will hold the returned location data
var field_location = "Field4";

// LF Forms Address Block Name ID
var field_address_block = 'Field5';

// Name ID of the DIV element that will display the map. This name should also match the one used in the CSS
var map_container = "viewDiv"

// Name of the basemap that will be used
// ESRI Basemaps - topo,streets,satellite,hybrid,dark-gray,gray,national-geographic,oceans,osm,terrain,dark-gray-vector,gray-vector,streets-vector,streets-night-vector,streets-navigation-vector,topo-vector,streets-relief-vector
var default_basemap = "topo-vector";

// Starting map center latitude
var start_lat = 33.52638;

// Starting map center longitude
var start_lon = -81.72373;

// Starting zoom level
var start_zoom = 12;

// Location of the map search box
var map_searchbox_location = "top-right";

// URL of the ArcGis JavaScript Library
var arcgis_script_url = "https://js.arcgis.com/4.18/";

// Cache the ArcGIS JavaScript Library?
var arcgis_script_cache = true;

// Rounding factor for clicked latitude and longitude
var latlon_factor = 100000000000000;

// Portal Map Options. ID and URL are required
var portal_map_id = ""//"72cbb6c5169540dbb29e30babb2c56b9";

var portal_map_url = ""//"https://aiken-sc.maps.arcgis.com";

// Click marker symbol variables
// Click marker style
var marker_symbol_click = "simple-marker";

// Click marker type
var marker_symbol_type = "point";

// Click marker symbol color [r,g,b]
var marker_symbol_color = [255,10,10];

// Click marker outline color [r,g,b]
var marker_symbol_outline_color = [255,255,255];

// Click marker outline width
var marker_symbol_outline_width = 2;

// Turn on/off console loging
var debug = true;

$(function() {

  var observer = new MutationObserver(function(e) {

    var lat = $(".geo-current-value[latitude][longitude]:eq(0)").attr('latitude');
    var lon = $(".geo-current-value[latitude][longitude]:eq(0)").attr('longitude');

    clickpoint.latitude = lat;
    clickpoint.longitude = lon;

    if(debug)
      console.log(JSON.stringify(clickpoint));

    reverse_geocode(clickpoint);

  });

  observer.observe($(".geo-current-value[latitude][longitude]")[0], {
    characterData: true,
    childList: true
  });
});



$.ajax({
    url: arcgis_script_url,
    cache: arcgis_script_cache,
    dataType: "script",
    success: function(data){
    require(["esri/portal/PortalItem",
             "esri/tasks/Locator",
             "esri/geometry/Point",
             "esri/widgets/Search",
             "esri/views/MapView",
             "esri/WebMap",
             "esri/Graphic"],
            function (PortalItem,
                       Locator,
                       Point,
                       Search,
                       MapView,
                       WebMap,
                       Graphic) {


      clickpoint = new Point();

      var webmap = new WebMap({});

      if(!portal_map_url.length == 0 && !portal_map_id.length == 0){

        webmap.portalItem = new PortalItem({portal: portal_map_url,
                                            id: portal_map_id
                                           });

      }else{

        webmap.basemap = default_basemap;

      }

      mapview = new MapView({
        map: webmap,
        container: map_container,
        center: [start_lon,start_lat],
        zoom: start_zoom,
        wkid: 4326,
      });


      search = new Search({
        view: mapview,
        resultGraphicEnabled: false,
        popupEnabled: true
      });

      search.on("select-result", function(evt){

        if(debug)
          console.log("The selected search result: ", JSON.stringify(evt));

      });

      mapview.ui.add(search, map_searchbox_location);

        mapview.on("click", function(evt) {

          if(debug)
            console.log('Click event object: '+ JSON.stringify(evt));

          var lat = Math.round(evt.mapPoint.latitude * latlon_factor) / latlon_factor;
          var lon = Math.round(evt.mapPoint.longitude * latlon_factor) / latlon_factor;

          if(debug){
            console.log('Clicked Latitude: '+ evt.mapPoint.latitude + ' (Rounded: '+ lat +')');
            console.log('Clicked Longitude: '+ evt.mapPoint.longitude + ' (Rounded: '+ lon +')');
          }

          if(!field_lat.length == 0)
            $('#'+ field_lat).val(lat);

          if(!field_lon.length == 0)
            $('#'+ field_lon).val(lon);


          search.clear();

          mapview.popup.clear();


          reverse_geocode(evt.mapPoint);

          var graphic = new Graphic({
            geometry: {
              type: marker_symbol_type,
              latitude: point.latitude,
              longitude: point.longitude,
              spatialReference: mapview.spatialReference,
            },
            symbol: {
              type: marker_symbol_click,
              color: marker_symbol_color,
              outline: {
                color: marker_symbol_outline_color,
                width: marker_symbol_outline_width,
              },
            },
          });

          mapview.graphics.removeAll();
          mapview.graphics.add(graphic);


        });

      });
    }
   });



function reverse_geocode(point){

  if (search.activeSource) {

    var geocoder = search.activeSource.locator; //Defaults to ESRI World Geocode Service
    var params = {location: point};

    geocoder.locationToAddress(params).then(

      function (response) {

      if(debug)
        console.log('Geocoder response object: '+ JSON.stringify(response));

      if(debug)
        console.log('Address object for '+ JSON.stringify(point) +': ' + response.address);

      var location_attributes = response.attributes;

      // Location
      if(!field_location.length == 0)
        $('#' + field_location).val(location_attributes.LongLabel);

      // Address Block - Street Address
      var field_address_street = field_address_block +'_DSG0';

      if(!field_address_street.length == 0)
      	$('#'+ field_address_street).val(location_attributes.Address);

      // Address Block - Address Line 2
      var field_address_two = field_address_block +'_DSG1';

      if(!field_address_two.length == 0)
      	$('#'+ field_address_two).val(location_attributes.Block);

       // Address Block - City
       var field_address_city = field_address_block +'_DSG2';

       if(!field_address_city.length == 0)
       $('#'+ field_address_city).val(location_attributes.City);

       // Address Block - State / Province / Region
       var field_address_state_province_region = field_address_block +'_DSG3';

       if(!field_address_state_province_region.length == 0)
         $('#'+ field_address_state_province_region).val(location_attributes.Region + ' ' + location_attributes.Territory);

       // Address Block - Postal / Zip Code
       var field_address_postal_zip_code = field_address_block +'_DSG4';

       if(!field_address_postal_zip_code.length == 0)
         $('#'+ field_address_postal_zip_code).val(location_attributes.Postal);

       // Address Block - Country
       var field_address_country = field_address_block +'_DSG5';

       if(!field_address_country.length == 0)
         $('#'+ field_address_country).val(location_attributes.CountryCode);


      },
      function (err) {

        if(debug)
          console.log('No address object found at: ' + JSON.stringify(point));

        if(!field_location.length == 0)
          ('#' + field_location).val("No address found.");
      });
	}
}

// Credits
// https://stackoverflow.com/questions/16619777/confused-about-mutationobserver
// https://community.esri.com/thread/235390-click-on-the-map-to-get-value-of-longitudelatitude
// https://developers.arcgis.com/javascript/latest/guide/quick-start/
// https://developers.arcgis.com/javascript/latest/guide/search-for-an-address/
// https://community.esri.com/thread/254312-graphics-for-on-map-click
// https://developers.arcgis.com/javascript/latest/api-reference/esri-widgets-Search.html#event-select-result



Screenshot_2021-03-05 Layout Laserfiche Forms.png
