Question

Form DMZ with identity provider in DMZ

Directory Server Forms

Updated October 4, 2019

asked on October 3, 2019

I am trying to authenticate to my DMZ forms server with "Use a Laserfiche Directory Server for Single Sign-On authentication"

I have:

Internal LFDS

Internal FORMS

DMZ FORMS

DMZ WebSTS on the forms server

following the instructions on : https://www.laserfiche.com/support/webhelp/Laserfiche/10/en-us/administration/#../Subsystems/LFDS/Content/separate-sts.htm?Highlight=websts

I have configured the LFDS by getting the host name which is a .local domain. Our SSL cert is a .ca I suspect this might be an issue.

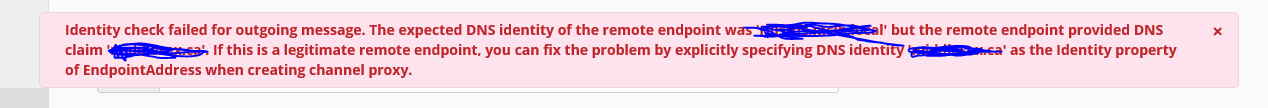

but I did get this error message ( attached ) is there a way to configure forms to set the DNS identity ? I wasn't sure in which config file and in which section this could be done.

Thanks


| Download

0 0

Answer

SELECTED ANSWER

replied on October 4, 2019

I will close this. I fixed it this morning.

I had to set the identity in the WebSTS web.config in the DMZ server aswell for all the endpoints.

I can now log on to the DMZ forms using its STS.

1 0

Replies

replied on October 3, 2019

I found the Directory Server Single Sign-on PDF guide and at the bottom it explains how to resolve this.

I had to add the identity in both the /Forms and /Config Web.config files and now the DMZ forms server user authentication works.

But now when I browse to login Forms DMZ, I get an error, Event log on DMZ server shows:

An error has occurred

LicenseManagerWebSTS.Infrastructure.Exceptions.WebSTSException: An error has occurred ---> System.Exception: Unable to sign in: could not identify the Laserfiche Directory Server site for sign-in.

0 0

replied on October 4, 2019

It sounds like the sign in URL being sent to STS is getting messed up. I recommend contacting Support about this for more in-depth troubleshooting steps.

1 0

SELECTED ANSWER

replied on October 4, 2019

I will close this. I fixed it this morning.

I had to set the identity in the WebSTS web.config in the DMZ server aswell for all the endpoints.

I can now log on to the DMZ forms using its STS.

1 0
