We have some metadata fields in our documents, such as name, student ID, status, DOB, etc. The authoritative source for these fields is our student information system. The Registrar's office wants the metadata in LF synced from the SIS so that the fields in the documents are always up to date. I have written a synchronization script in SQL, along with a workflow, to accomplish this. However, what I have found is that some LF document IDs (entry IDs) generated by the SQL statement are not found when processed by the workflow. This doesn't make sense as there wouldn't be any way for the IDs to disappear between the two processes, so IDs generated by the SQL statement should ALWAYS be found by the workflow. This makes me think that maybe my SQL statement isn't correct in some way. I am hoping someone can look at my SQL and sanity-check it for me. The whole process works just fine, except for the fact that maybe 1/10 or 1/100 of the entry IDs generated do not get found by the workflow.
Here is the SQL statement that generates the data out of LF. Please look it over and tell me if it looks right or if I am missing something. For instance, last night when it ran, out of 50,000 documents, 6 document IDs were not found. If you need more info, please let me know. Thanks!
Also, here is the way this works:
1) SQL stored procedure runs that generates the documents out of LF (below)
2) SQL SP then reads the authoritative info out of the SIS
3) SQL SP then does some processing which leaves only those records that have different field values in LF (sample data shown below) vs. what is in the SIS

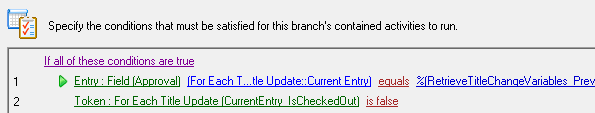

4) Workflow runs which takes the records out of the built sync table (sample data shown below) and updates the field values in LF for the given entry IDs (DocID).
DECLARE @IDField varchar(30) = 'Student ID';
DECLARE @SSNField varchar(30) = 'SSN';
DECLARE @LNameField varchar(30) = 'Last Name';
DECLARE @FNameField varchar(30) = 'First Name';
DECLARE @MNameField varchar(30) = 'Middle Initial';
DECLARE @DOBField varchar(30) = 'Birth Date';
DECLARE @MatricField varchar(30) = 'Matric Date';
DECLARE @StatusField varchar(30) = 'Student Status';
DECLARE @PrivacyField varchar(30) = 'Privacy Act';
DECLARE @DependField varchar(30) = 'Dependency Affidavit';
DECLARE @DeceasedField varchar(30) = 'Deceased Student';
DECLARE @StudentRec varchar(40) = 'Student Academic Record';
DECLARE @HousingRec varchar(40) = 'Student Housing Record';
DECLARE @FinAidRec varchar(40) = 'Student Financial Aid Record';
WITH TempTable (tocid, pset_name, prop_name, str_val, short_str_val, date_val) AS (
SELECT PV.tocid, PS.pset_name, prop_name, str_val, short_str_val, date_val
FROM LF8.dbo.propval PV
INNER JOIN LF8.dbo.propdef PD ON PV.prop_id = PD.prop_id
AND PD.prop_name IN (@IDField, @SSNField, @LNameField, @FNameField, @MNameField, @DOBField, @MatricField, @StatusField, @PrivacyField, @DependField, @DeceasedField)
LEFT JOIN LF8.dbo.toc TOC ON TOC.tocid = PV.tocid AND TOC.parentid > 2
INNER JOIN LF8.dbo.propset PS on TOC.pset_id = PS.pset_id
AND PS.pset_name IN (@StudentRec, @HousingRec, @FinAidRec)
)
INSERT INTO LFFieldData (DocID, StuID, SSN, LName, FName, MI, DOB, Matric, Status, Privacy, Depend, Deceased)
SELECT tocid,
max(CASE WHEN prop_name = @IDField THEN str_val END) AS StuID,
max(CASE WHEN prop_name = @SSNField THEN str_val END) AS SSN,
max(CASE WHEN prop_name = @LNameField THEN str_val END) AS LNAME,
max(CASE WHEN prop_name = @FNameField THEN str_val END) AS FNAME,
max(CASE WHEN prop_name = @MNameField THEN str_val END) AS MI,
max(CASE WHEN prop_name = @DOBField THEN str_val END) AS DOB,
max(CASE WHEN prop_name = @MatricField THEN str_val END) AS MATRIC,
max(CASE WHEN prop_name = @StatusField THEN str_val END) AS STATUS,
max(CASE WHEN prop_name = @PrivacyField THEN str_val END) AS PRIVACY,
max(CASE WHEN prop_name = @DependField THEN str_val END) AS DEPEND,
max(CASE WHEN prop_name = @DeceasedField THEN str_val END) AS DECEASED
FROM TempTable
GROUP BY tocid;
Here is a sample of the data generated by the SQL statement:
DocID StuID SSN Lname Fname MI DOB Matric Status Privacy Depend Deceased UpdateTS 11446 123456789 123451234 STUDENT NEW A 1/5/1970 2018/01 Admission No Show No N No 7/11/18 5:17 PM 11453 234567890 888990000 JONES BOB B 3/25/1969 2018/01 Inactive No N No 7/11/18 5:17 PM 11480 456789012 555667777 SMITH JOHN C 2/19/1968 2016/08 Inactive No N No 7/11/18 5:17 PM 11483 111223333 222334444 FRANK CHERYL D 4/12/1967 2018/08 Pending or Cancelled No N No 7/11/18 5:17 PM
