Hi all,
Can I auto fill the signature's field with a picture?

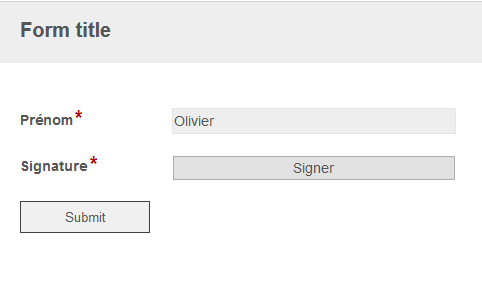

Actually, this is what I have.

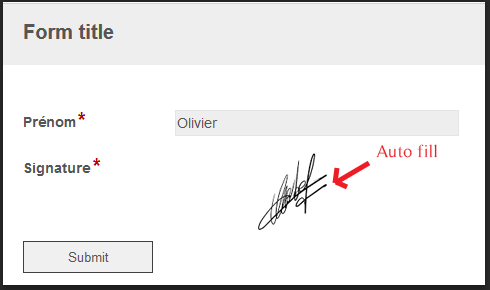

And this is what I want
Hi all,
Can I auto fill the signature's field with a picture?
Actually, this is what I have.
And this is what I want
Hi,

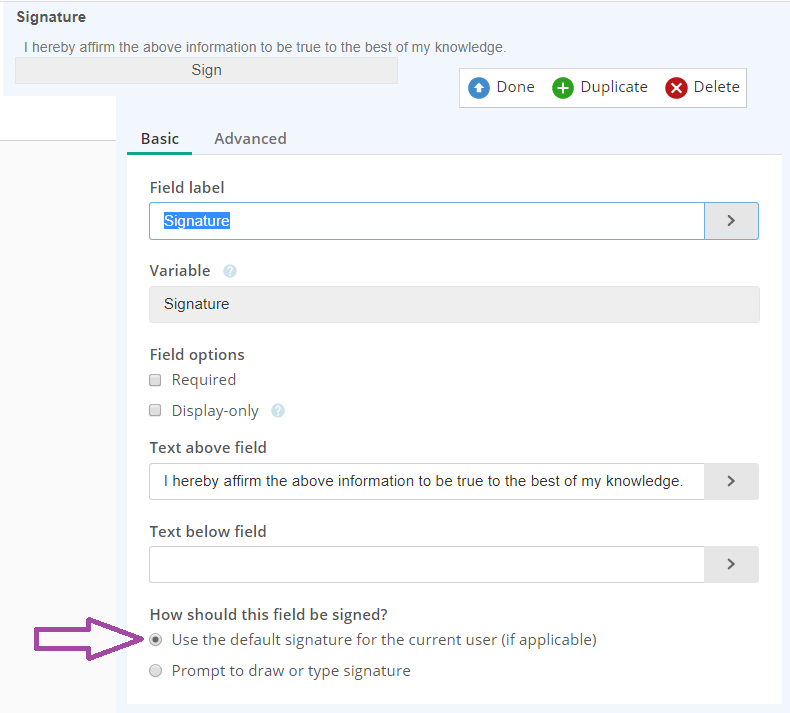

Each user can set an individual signature and it can be shown by default when a signature is required. When building the form, there's a radio button enabling this:

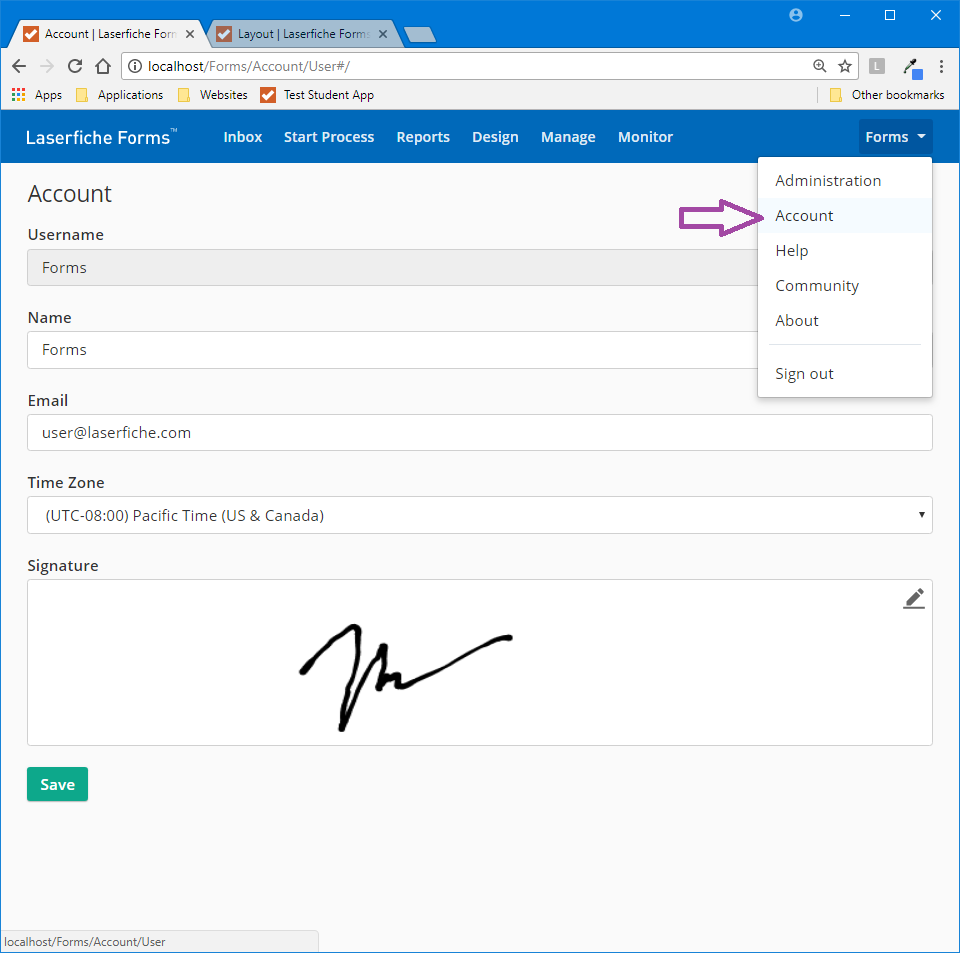

To set up the signature, go to the account name on the top right, then account:

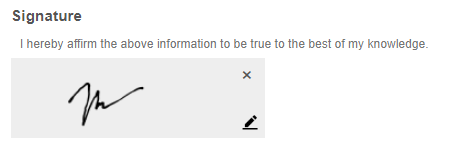

And whenever asked for a signature, it will show up without being prompted like this:
Hope this helps!
Hi there,
What about auto-filling a signature using a base64 value that is looked up from the database?
Hi Ege Ersoz,
This is a good idea. Thank you very much.
Regards
Hi Ege,
Could you please give me the table's name?
thanks in advance
Ok I found how to do. Thank you anyway.
First get your picture to 500x150px in png with alpha.
Then convert it to Base64 using this website
Clic on "</> show code" to get the code

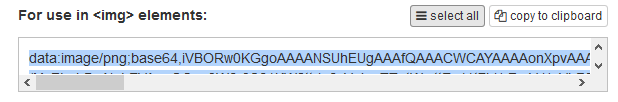

Copy the code "For use in <img> elements:"

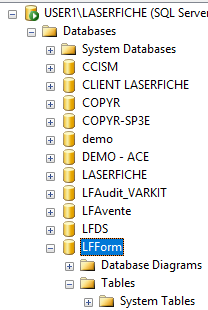

Next, open your Microsoft SQL Server Management Studio and go to your Database Form (mine is called LFForm).
Go to "dbo.cf_users" to get your "user_id"

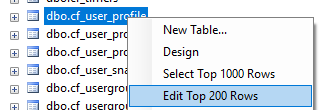

Then, go to "dbo.cf_user_profile" to edit it.
Find your "user_id"
Change the "data_url" and "thumbnail_data_url" ; paste the previous code generated by the website https://www.base64-image.de/
Save and close MSSQL Management Studio.

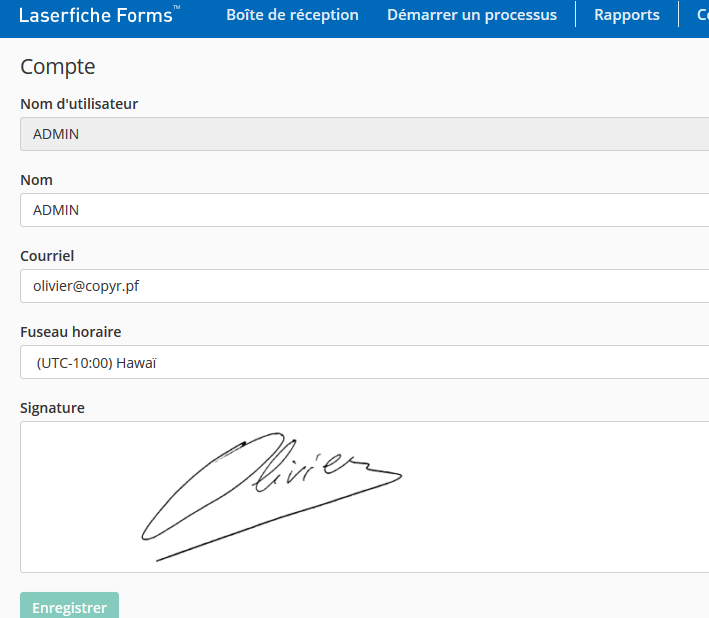

Check your signature on LFForm
@Olivier this is awesome, thank you!

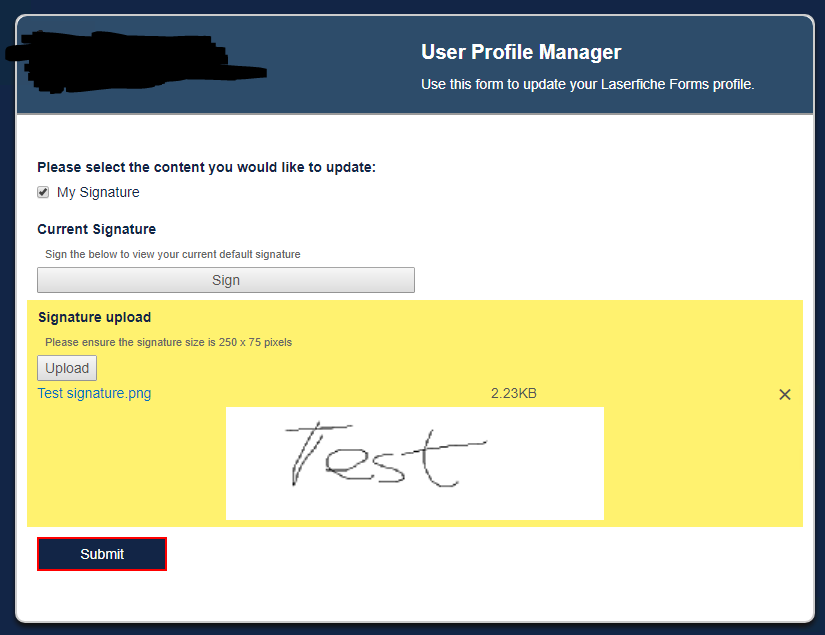

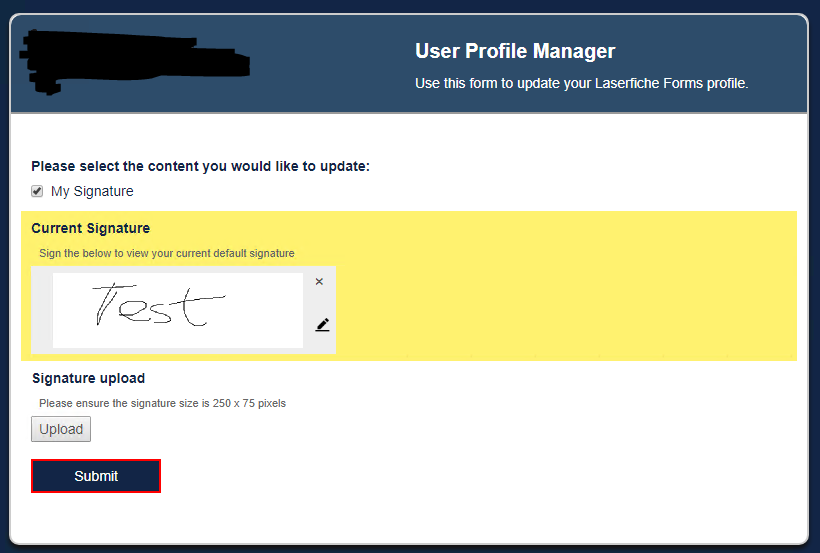

I used your approach and created a Laserfiche Form to allow users to modify their own with the upload feature (tested on development server).

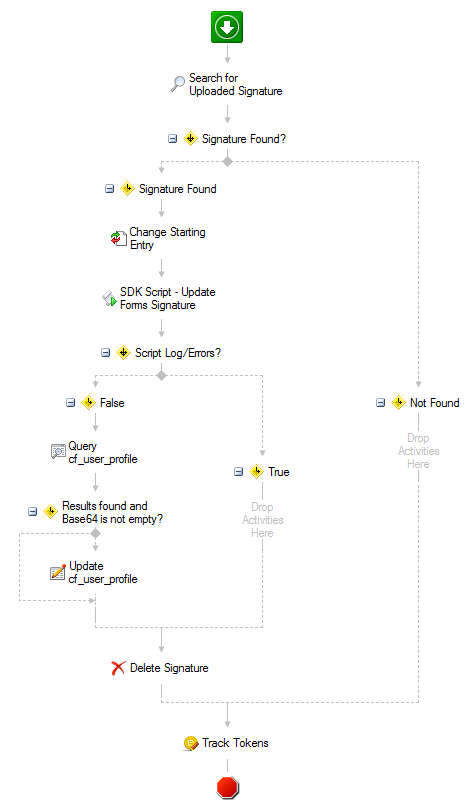

The uploaded signature is saved to the Repository, Workflow exports it using the SDK script, converts the image content to Base64 then updates the database using the SID of the form submitter.
Great post. This should really become a new feature though!
Nice Job!
I didn't think to make a form for that.
I scan myself the signatures for each user at my office XD
Could you please share your sdk? Or better, your workflow?
Hey, sorry for the late reply I missed this one!
I've attached the Workflow. You'll need to change the .TXT extension to .WFX though as it won't let me upload the Workflow file.
Just change the references for the export path in the SDK script, the SQL datasources and search activity to find the attachment saved from Forms. My VB.NET isn't great but it I hope it helps (...and makes sense!)
Dom
Hi Karina,
thank you for your return.
It's working
Is it possible to upload a picture (a scan for exemple) ?
