Question

Retrieve business process variables, collection to multi-value

Forms Workflow Version 10

Updated December 5, 2016

asked on December 2, 2016

I have read other posts on this topic, but can't make it work. I understand that I need to use a "For Each Row" activity in order to get WF to save my multi-values properly, but I can't figure out how to configure it.

This is my collection field on the form; in this case the applicant entered two locations.

The WF is set up to collect the variables to be used to fill fields on a Laserfiche document, but the target field is multi-value and strictly controlled for the format. How do I set up this For Each Row so that it knows what to collection to select?

0 0

Replies

replied on December 2, 2016

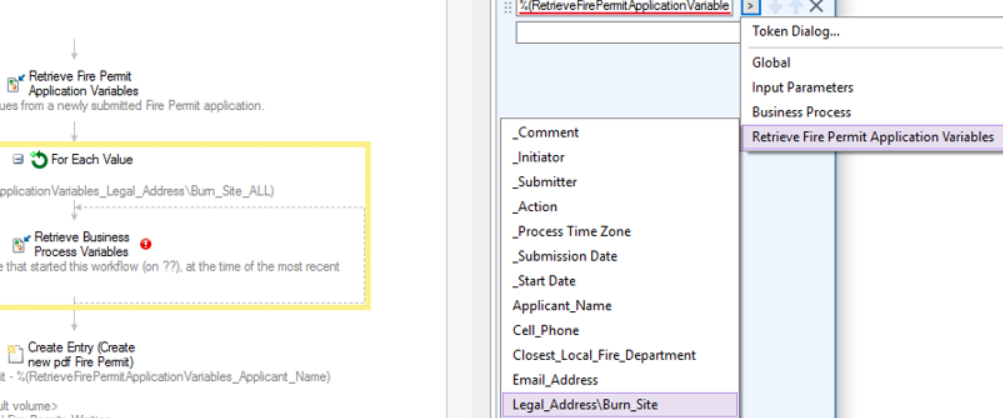

Use For Each Value activity and in the Values point to multivalue field retrived eg %RetiveFieldValues_Location_ALL

then to reference each value in the iteration use

(%RetiveFieldValues_Location_ALL#[(%ForEachValue_Interation)]#)

0 0

replied on December 5, 2016

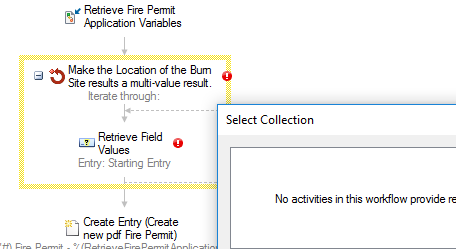

David, I'm trying this, but I cannot see where I could pick one that indicates a multi-value field. I even tried adding the ALL to the end of my token, but of course it then shows up red because there isn't that option on mine.

0 0

replied on December 2, 2016

Can you show your settings for Retrieve Fire Permit Application Variables?

0 0

replied on December 5, 2016

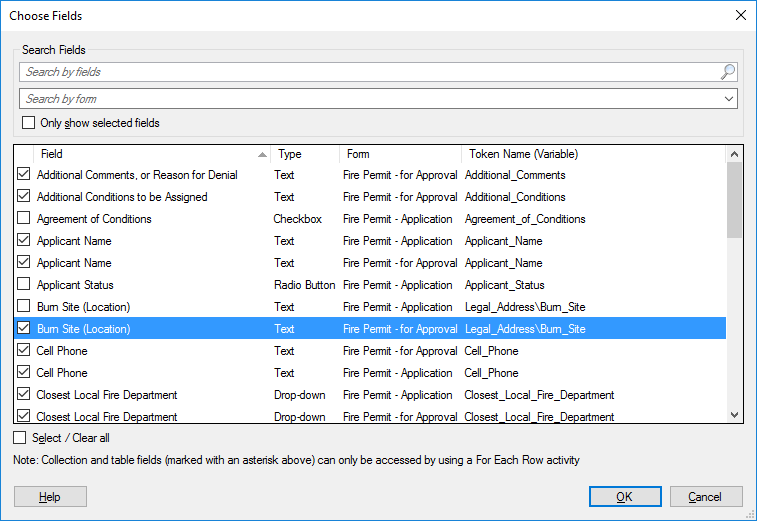

Miruna, here it is. I cannot find where to tell it to collect as a multi-value. I see at the bottom the note that "Collection (which this one is) and table fields ... can only be accessed by using a For Each Row activity":

0 0

replied on December 5, 2016

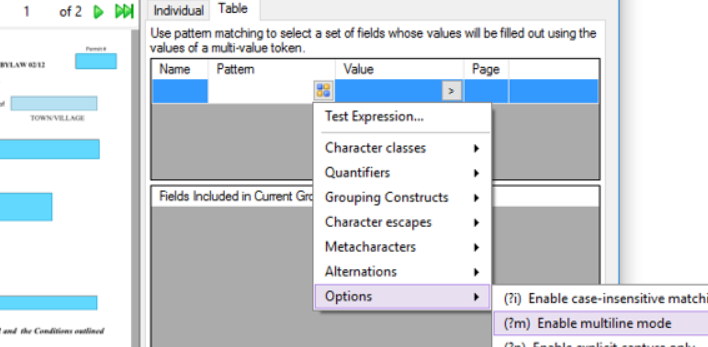

For any future readers looking for this answer: I got this working without any "For Each Value" or "For Each Row" activity. I'm not sure which part worked, but there were two things that I spotted in other posts. In both cases, it was in the "fill out pdf fields" activity. One change was in the gear options (top right), to put a check mark in the "Align field data", and the second thing was in the field selection: I noticed there was a second tab in that person's screen capture. The second tab was called Table and within this table was a Pattern field where you could tell the activity to "Enable multiline mode". It works now!

0 0
