Question

Question

How to convert PDF Byte Array into PDF document?

asked on May 12, 2014

We have a workflow where we are receiving employee documents back from a 3rd party service in a PDF byte array. How would we go about converting this byte array to a PDF to store into Laserfiche?

2 0

Answer

SELECTED ANSWER
replied on May 23, 2014

Something like this should work but I didn't have much time to test it:



            string token = this.WorkflowApi.GetTokenValueFromNameAsString("HTTPWebRequest_Content File", 1);
            string base64PDF = null;
            using(StringReader stringReader = new StringReader(token))
            {
                using(XmlReader reader = XmlReader.Create(stringReader))
                {
                    if(!reader.ReadToFollowing("GetFormAsPDF"))
                    {
                        this.WorkflowApi.TrackWarning("HTTP Response was not valid.");
                        return;
                    }

                    base64PDF = reader.Value;
                }
            }

            this.SetTokenValue("Base64PDF", base64PDF);
            byte[] pdfBytes = Convert.FromBase64String(base64PDF);

            DocumentInfo doc = this.BoundEntryInfo as DocumentInfo;
            if (doc == null)
            {
                this.WorkflowApi.TrackWarning("Entry was not a document.");
                return;
            }

            using (Stream edocStream = doc.WriteEdoc("application/pdf", pdfBytes.Length))
            {
                edocStream.Write(pdfBytes, 0, 0);
            }

            doc.Extension = ".pdf";
            doc.Save();



2 0

Replies

replied on May 12, 2014

Are you using the Http Request Activity? If so you can use the Attach E-doc activity if the web service is returning the PDF document as the response.



3 0
replied on May 12, 2014

We are using the HTTP Request activity. We will give it a try. Thank you!

1 0
replied on May 22, 2014

So if my Web Request reply looks like this:

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<GetFormAsPDF p1:type="Edm.Binary" xmlns:p1="http://schemas.microsoft.com/ado/2007/08/dataservices/metadata" xmlns="http://schemas.microsoft.com/ado/2007/08/dataservices">JVBERi0xLjANCjEgMCBvYmoNCjw8DQovVHlwZSAvQ2F0YWxvZw0KL1BhZ2VzIDMgMCBSDQovT3V0bGluZXMgMiAwIFINCi9QYWdlTW9kZSAvVXNlT3V0bGluZXMNCi9QYWdlTGF5b3V0IC9PbmVDb2x1bW4NCj4+DQplbmRvYmoNCiUlIEZvckFwcE5vJSUgVGl0bGVTdHJpbmc6IEhlYWx0aCBJbnN1cmFuY2UgTWFya2V0IFBsYWNlIENvdmVyYWdlIC==</GetFormAsPDF>

Do I need to extract just the data in between the GetFormAsPDF tags?

1 0
replied on May 23, 2014

You have to extract the string and decode it from Base 64.

Unfortunately that is outside what Attach e-doc can support at this time.



You'll want to use a script and the Convert.FromBase64String function to get a byte[] that you put into your e-doc stream.





0 0
replied on May 23, 2014

Has anyone created a script like what Ed is referring to that would be willing to share their work?

1 0
SELECTED ANSWER
replied on May 23, 2014

Something like this should work but I didn't have much time to test it:



            string token = this.WorkflowApi.GetTokenValueFromNameAsString("HTTPWebRequest_Content File", 1);
            string base64PDF = null;
            using(StringReader stringReader = new StringReader(token))
            {
                using(XmlReader reader = XmlReader.Create(stringReader))
                {
                    if(!reader.ReadToFollowing("GetFormAsPDF"))
                    {
                        this.WorkflowApi.TrackWarning("HTTP Response was not valid.");
                        return;
                    }

                    base64PDF = reader.Value;
                }
            }

            this.SetTokenValue("Base64PDF", base64PDF);
            byte[] pdfBytes = Convert.FromBase64String(base64PDF);

            DocumentInfo doc = this.BoundEntryInfo as DocumentInfo;
            if (doc == null)
            {
                this.WorkflowApi.TrackWarning("Entry was not a document.");
                return;
            }

            using (Stream edocStream = doc.WriteEdoc("application/pdf", pdfBytes.Length))
            {
                edocStream.Write(pdfBytes, 0, 0);
            }

            doc.Extension = ".pdf";
            doc.Save();



2 0
replied on August 1, 2014

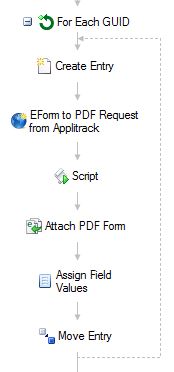

Ed, so would I do something like the following:

When I try to tell the Attach PDF Form activity to Attach a file from the "EForm to PDF Request from Applitrack" activity, the script is not available to select from. How would I accomplish that?

1 0
replied on August 1, 2014

You shouldn't need the attach pdf form activity in this sample since the script is doing that work already.

0 0
replied on October 22, 2014

Ed, when I try add the Script activity and then add what you posted into the Script Editor where it says 'Write your code here, it gives me a bunch of errors when I hover over the exclamation point. Am I supposed to be entering what you posted a different way into the script activity?

Also, how to I do I tell the script to process the byte array that is returned from the "EForm to PDF Request from Applitrack" activity? Here is a screenshot of what I have currently:

1 0
replied on October 22, 2014

What do the errors say? Stuff like "'String' is a class type and cannot be used as an expression."?

Ed's code was in C#, your activity seems to be using VB.NET.

0 0
replied on October 23, 2014

I switched it to C# and that seems to have gotten rid of some of the error messages, but now I am seeing things like "namespace stringready could not be found" or "namespace xmlreader could not be found".

1 0
replied on October 23, 2014

Add a reference to System.IO to your script. Then at the top in the using statements, add

    using System.IO;
    using System.Xml;



0 0
replied on October 23, 2014

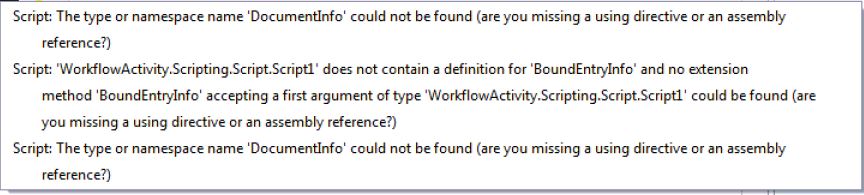

That got rid of most of the errors. I now have 3 left.

1 0
replied on October 24, 2014

The script above assumes WF 9.1.1. Are you running 9.0.2 or lower?

0 0
replied on October 27, 2014

No, we are running the latest version of 9.2.

1 0
replied on October 27, 2014

We got the errors figured out. We were not using the SDK script activity. A couple of other questions on this though. Does the script attach the PDF to the entry created in the "Create Entry" step of the workflow or do I need to change something for that to happen?

1 0
replied on October 27, 2014

Lines 27-33 save the PDF to the Laserfiche doc.

1 0
replied on October 27, 2014

The code that Ed provided will import the PDF into the Document Entry you set the Script activity to run against.  You can see that on line 20:

DocumentInfo doc = this.BoundEntryInfo as DocumentInfo;



0 0
replied on October 27, 2014

Thanks Bert!

1 0
replied on October 22, 2014

Hey Ed,



Could you give some more insight on how this script should be written? We have limited knowledge in this process and any help would be appreciated!



Thanks!

0 0
replied on October 23, 2014 Show version history

You should make the script a C# script,  it looks like in the workflow you have it set to a visual basic script.That's assuming you copied ed's code which is C#.



Edit - didn't see the reply that pointed this out, disregard.

0 0
replied on February 2, 2015 Show version history

Thank you everyone for the help. Below is the completed Workflow we came up with for our needs based on the feedback here:

And below are the contents of the SDK Script:

namespace WorkflowActivity.Scripting.SDKScript
{
    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Data.SqlClient;
    using System.Text;
    using System.IO;
    using System.Xml;
    using Laserfiche.RepositoryAccess;

    /// <summary>
    /// Provides one or more methods that can be run when the workflow scripting activity is performed.
    /// </summary>
    public class Script1 : RAScriptClass92
    {
        /// <summary>
        /// This method is run when the activity is performed.
        /// </summary>
        protected override void Execute()
        {
            string token = this.WorkflowApi.GetTokenValueFromNameAsString("EFormtoPDFRequestfromApplitrack_Content", 0);
            //var token2 = GetTokenValue("EFormtoPDFRequestfromApplitrack_Content File");


            // string token = this.WorkflowApi.GetTokenValueFromNameAsString("HTTPWebRequest_Content File", 1);
string base64PDF = null;
using(StringReader stringReader = new StringReader(token))
{
    using(XmlReader reader = XmlReader.Create(stringReader))
    {
        if(!reader.ReadToFollowing("GetFormAsPDF"))
        {
            this.WorkflowApi.TrackWarning("HTTP Response was not valid.");
            return;
        }

        base64PDF = reader.ReadElementContentAsString("GetFormAsPDF", "http://schemas.microsoft.com/ado/2007/08/dataservices");
    }
}

this.SetTokenValue("Base64PDF", base64PDF);
byte[] pdfBytes = Convert.FromBase64String(base64PDF);

DocumentInfo doc = this.BoundEntryInfo as DocumentInfo;
if (doc == null)
{
    this.WorkflowApi.TrackWarning("Entry was not a document.");
    return;
}

using (Stream edocStream = doc.WriteEdoc("application/pdf", pdfBytes.Length))
{
    edocStream.Write(pdfBytes, 0, pdfBytes.Length);
}

doc.Extension = ".pdf";
doc.Save();
        }
    }
}

I hope it helps someone.

0 0
replied on September 7, 2016

Hii all ,

we are reading a PDF File in byte array format through HTTP Web Service in our Workflow.

Aspx .



We need to retrieve the PDF Contents now through our SDK Script.

How can we do the same?? Thanks for your help.

namespace WorkflowActivity.Scripting.SDKScript
{
    using System;
    using System.Collections.Generic;
    using System.ComponentModel;
    using System.Data;
    using System.Data.SqlClient;
    using System.Text;
    using System.IO;
    using System.Xml;
    using Laserfiche.RepositoryAccess;

    /// <summary>
    /// Provides one or more methods that can be run when the workflow scripting activity is performed.
    /// </summary>
    public class Script1 : RAScriptClass92
    {
        /// <summary>
        /// This method is run when the activity is performed.
        /// </summary>
        protected override void Execute()
        {
            string token = this.WorkflowApi.GetTokenValueFromNameAsString("EFormtoPDFRequestfromApplitrack_Content", 0);
            //var token2 = GetTokenValue("EFormtoPDFRequestfromApplitrack_Content File");


            // string token = this.WorkflowApi.GetTokenValueFromNameAsString("HTTPWebRequest_Content File", 1);
string base64PDF = null;
using(StringReader stringReader = new StringReader(token))
{
    using(XmlReader reader = XmlReader.Create(stringReader))
    {
        if(!reader.ReadToFollowing("GetFormAsPDF"))
        {
            this.WorkflowApi.TrackWarning("HTTP Response was not valid.");
            return;
        }

        base64PDF = reader.ReadElementContentAsString("GetFormAsPDF", "http://schemas.microsoft.com/ado/2007/08/dataservices");
    }
}

this.SetTokenValue("Base64PDF", base64PDF);
byte[] pdfBytes = Convert.FromBase64String(base64PDF);

DocumentInfo doc = this.BoundEntryInfo as DocumentInfo;
if (doc == null)
{
    this.WorkflowApi.TrackWarning("Entry was not a document.");
    return;
}

using (Stream edocStream = doc.WriteEdoc("application/pdf", pdfBytes.Length))
{
    edocStream.Write(pdfBytes, 0, pdfBytes.Length);
}

doc.Extension = ".pdf";
doc.Save();
        }
    }
}
0 0
replied on September 14, 2016

To send data across the web, it needs to be converted to a string.  You will notice in the code sample provided by Ed that he is loading the received data into a string object and then generating a byte array using Convert.FromBase64String:

string base64PDF = null;
...
byte[] pdfBytes = Convert.FromBase64String(base64PDF);

So in your code to send the PDF, you must convert your byte array into a Base64String and then send the string to the requester.

0 0
